What is Testerra?

Test automation

It is an integrated framework for automating tests for (web) applications. Testerra can also be understood as a building block for test automation projects with various basic components. It also includes a prepared "foundation" on which complex test automation environments can be built. Testerra is developed by our Test Automation Experts at T-Systems MMS GmbH in Dresden (Website). In numerous projects Testerra is used as the standard test automation framework.


Getting Started

1. Create a new project

1.1. System requirements

  • Testerra is based on Java. You need a JDK 8 or later.

  • Execute your tests with Maven or Gradle

1.2. Testerra Skeleton project

We provide a skeleton project to demonstrate the basic features of Testerra.

1.3. Testerra manual setup

1.3.1. Setup

Testerra and all its components are deployed to MavenCentral: https://mvnrepository.com/artifact/io.testerra

For Testerra you need at least the following dependencies.

Gradle
// build.gradle

apply plugin: 'java'

// Its highly recommended to normalize your project to Unicode
compileJava.options.encoding = 'UTF-8'
compileTestJava.options.encoding = "UTF-8"

dependencies {
    compile 'io.testerra:driver-ui-desktop:2.0-RC-5'
    compile 'io.testerra:report-ng:2.0-RC-5'
}
Maven
<!-- pom.xml -->
<project>
    <properties>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <!-- Its highly recommended to normalize your project to Unicode -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>
    <dependencies>
        <dependency>
            <groupId>io.testerra</groupId>
            <artifactId>driver-ui-desktop</artifactId>
            <version>2.0-RC-5</version>
        </dependency>

        <dependency>
            <groupId>io.testerra</groupId>
            <artifactId>report-ng</artifactId>
            <version>2.0-RC-5</version>
        </dependency>

        <!-- These dependency are required to get logging to work in Maven -->
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-slf4j18-impl</artifactId>
            <version>2.13.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-api</artifactId>
            <version>2.13.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-core</artifactId>
            <version>2.13.2</version>
        </dependency>

    </dependencies>
</project>

1.3.2. Create project structure

Your project structure should comply with these simple constraints.

  • src/main Contains all the code for your project like PageObjects, Models and language specific resources.

  • src/test Contains all test related code like your Tests, Test-Suites, Test-Data and Testerra related setup.

1.3.3. Create test.properties

Create a new file at src/test/resources with the name test.properties.

test.properties
# Setting the browser
tt.browser=chrome

# Setting the start page
tt.baseurl=http://example.org
All defined properties can be overwritten later by adding system parameters to your command
(e.a -Dtt.browser=firefox)

All supported browsers are listed in WebdriverManager properties

1.3.4. Create Page Class

Now it’s time to create a first simple page class. It should be saved at path src\main\java\<package>. The following example represents the website example.org. It contains one possible link to click and one method to test.

New page class
import eu.tsystems.mms.tic.testframework.pageobjects.Page;
import eu.tsystems.mms.tic.testframework.pageobjects.UiElement;

public class ExamplePage extends Page {

    @Check
    private UiElement moreInformationLink =
        find(By.partialLinkText("More information"));

    public ExamplePage(WebDriver driver) {
        super(driver);
    }

    public void clickOnMoreInformation() {
        moreInformationLink.click();
    }
}

The basic Page class added all the page object functionality of Testerra to your project. See PageObjects chapter for more details.

The UiElement describes the elements like links, buttons, etc. on your page. Learn more about UiElements in UiElements.

1.3.5. Create Test Class and Test Method

The easiest way to create a new test, is by creating a new class in the path of src\test\java\<package> and let it extend from TesterraTest.

If you already have test classes that extend, you can add the TesterraListener manually. Both ways do basically the same. To stick to the example above, here is a very simple test class which navigates to example.org and clicks on the link defined on the example page. Again, probably imports must be made in IDE.

TesterraTest
import eu.tsystems.mms.tic.testframework.testing.TesterraTest;
import eu.tsystems.mms.tic.testframework.testing.PageFactoryProvider;

public class ExampleTest extends TesterraTest implements PageFactoryProvider {

    @Test
    public void testT01_My_first_test() {
        ExamplePage examplePage = PAGE_FACTORY.createPage(ExamplePage.class);
        examplePage.clickOnMoreInformation();
    }
}

Be aware of using @Test annotation at your test method. You have to use the TestNG annotation, not from JUnit.

If you import JUnit lib, no test is executed via Maven or Gradle.

TesterraListener
import eu.tsystems.mms.tic.testframework.report.TesterraListener;
import org.testng.annotations.Listeners;

@Listeners(TesterraListener.class)
public class ExampleTest {
}

1.3.6. Setup Selenium

If you don’t have a remote selenium yet, you can easily install it by the package manager of your choice.

chocolately for Windows
choco install selenium selenium-chrome-driver
Ubuntu/Debian
apt-get install chromium-chromedriver
homebrew for Mac
brew install selenium-server-standalone chromedriver

Read here, if you want to setup another Selenium configuration.

1.3.7. Setup a test suite

To customize the executing of your tests, you have to create a TestNG suite file suite.xml and locator it at src/test/resources

suite.xml
<!DOCTYPE suite SYSTEM "https://testng.org/testng-1.0.dtd" >
<suite name="Suite1" verbose="1" thread-count="10" configfailurepolicy="continue" parallel="false">
    <test name="Test1" parallel="methods">
        <classes>
            <class name="ExampleTest"/>
        </classes>
    </test>
</suite>

1.3.8. Setup test build target

In order to get tests to work, you need to setup a build target test in your project.

Gradle
// build.gradle
test {
    useTestNG() {
        suites file('src/test/resources/suite.xml')
    }

    testLogging {
        outputs.upToDateWhen { false }
        showStandardStreams = true
    }

    // Important: Forward all JVM properties like proxy settings to TestNG
    options {
        systemProperties(System.getProperties())
    }

    // basically execution returns "GREEN" (framework exits with exit code > 0 if there were failures)
    ignoreFailures = true
}
Maven
<!-- pom.xml -->
<project>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-surefire-plugin</artifactId>
                <configuration>
                    <skip>true</skip>
                    <testFailureIgnore>true</testFailureIgnore>
                </configuration>
            </plugin>
        </plugins>
    </build>

    <profiles>
        <profile>
            <id>mySuite</id>
            <activation>
                <activeByDefault>true</activeByDefault>
            </activation>
            <build>
                <plugins>
                    <plugin>
                        <artifactId>maven-surefire-plugin</artifactId>
                        <configuration>
                            <skip>false</skip>
                            <suiteXmlFiles>
                                <suiteXmlFile>src/test/resources/suite.xml</suiteXmlFile>
                            </suiteXmlFiles>
                        </configuration>
                    </plugin>
                </plugins>
            </build>
        </profile>
    </profiles>
</project>

1.3.9. Run the tests

Finally you are good to run your very first test by entering the following command:

Gradle
gradle test
Maven
mvn test

1.4. Using a proxy

There are three ways for setting up a proxy for your test run environment.

  • System proxy settings for the build environment (Maven, Gradle), TestNG, JVM and Selenium

  • Browser proxy settings for the SUT, which is done by capabilities as described here Proxy setup

To setup a proxy for the whole system, including the build environment (Maven, Gradle), the JVM and Testerra, the recommended way is to pass it by command line arguments like

gradle test -Dhttps.proxyHost=your-proxy-host.com -Dhttps.proxyPort=8080

1.4.2. Property file

You can also put your proxy settings to the system Property files with the following content

Example of system.properties
https.proxyHost=your-proxy-host.com
https.proxyPort=8080
https.proxyUser=
https.proxyPassword=
https.nonProxyHosts=localhost|192.168.0.1

http.proxyHost=your-proxy-host.com
http.proxyPort=8080
http.proxyUser=
http.proxyPassword=

1.4.3. Access the system proxy URL

The system proxy can be accessed by Proxy Utilities

Since Java 11, it is possible to pass the system’s preconfigured proxy into the JVM.

gradle test -Djava.net.useSystemProxies=true

This affects all Java internal network connections which uses ProxySelector, but it will not set the environment variables and are transparent to Proxy Utilities and any Browser capabilities.

1.5. Logging

The log configuration prints out to System.out by default. If you want to have more control over several log levels of classes, add a log4j2.xml to your resources/.

log4j2.xml
<?xml version="1.0" encoding="UTF-8" ?>
<Configuration packages="eu.tsystems.mms.tic.testframework.logging">
    <Appenders>
        <Console name="CONSOLE">
            <!--
                The marker %contextIds gets replaced by internal plugins registered from
                plugins packages in the <configuration> node
            -->
            <PatternLayout pattern="%d{dd.MM.yyyy HH:mm:ss.SSS} [%t][%p]%contextIds: %c{2} - %m%n" />
        </Console>
    </Appenders>
    <Loggers>
        <Root level="info">
            <AppenderRef ref="CONSOLE"/>
        </Root>
    </Loggers>
</Configuration>

You can also change the root log level from the command line via.

-Dlog4j.level=DEBUG

Testerra Framework

2. WebDriverManager

2.1. Overview

The WEB_DRIVER_MANAGER is the central component to create and close your WebDriver sessions and becomes available by implementing the WebDriverManagerProvider interface. It uses the standard Selenium Webdriver, but it is easier to configure.

2.2. WebDriver sessions

Before you can use WebDriver sessions, you have to setup a Selenium-compatible server.

2.2.1. Setup remote sessions

For using a remote Selenium server (e.g. a Selenium Grid) you only have to tell Testerra where it can be find.

Additional settings in test.properties
tt.webdriver.mode=remote

# Selenium host and port
tt.selenium.server.host=localhost
tt.selenium.server.port=4444

# Or combined as URL
tt.selenium.server.url=http://localhost:4444/wd/hub
The browser support depends on the remote selenium setup.

Regularly, there is no reason to use local Selenium sessions based on binaries. We won’t recommend using that, because we’ve experienced slightly differences between the local and remote behaviour.

However, Testerra supports using local web drivers.

  • Search for your browser’s selenium driver online, like selenium gecko driver for Firefox or selenium crome driver for Chrome based browsers

  • Download your WebDriver binary from browser vendor’s website to a local location

  • Make sure the driver version supports your installed browser

  • Since the properties are system properties, you need to put the location of the binaries to the system.properties file as mentioned in the Property files section.

system.properties
tt.webdriver.mode=local
webdriver.gecko.driver="C:\\absolute\\path\to\\your\\geckodriver.exe"

# or for other browsers
webdriver.chrome.driver=...
webdriver.edge.driver=...
webdriver.ie.driver=...

You can also pass the wedriver by the command line using

-Dwebdriver.gecko.driver=C:\absolute\path\to\your\geckodriver.exe

2.2.3. Usage of WebDriver sessions

Before starting a WebDriver session, you should configure your desired browser like.

# Browser name and version
tt.browser=firefox
tt.browser.version=65

# Or both combined
tt.browser.setting=firefox:65

On the first call of

WebDriver driver = WEB_DRIVER_MANAGER.getWebDriver();

Selenium is triggered to open a new Browser windows with the defined URL.

Use remote Selenium server as often as possible, also for development. So your project is independent of any WebDriver configuration and needed Webdriver binary files.

For every other call of getWebDriver() in the same test context WebDriverManager always returns the existing session.

This makes it possible to retrieve the current session in any context and avoids to force the user to pass the instance around.

2.2.4. WebDriver lifecycle

The default behaviour of Testerra’s WebDriverManager is, to create unique WebDrivers for each thread and/or test method. That prevents issues in mutual interference between multiple threads.

2.2.5. Use multiple sessions

The WebDriverManager can handle more than one session in one test context. Every session has a defined session key. If no key was set, the default session key is called default.

The following example creates two independent browser sessions:

WebDriver driver = WEB_DRIVER_MANAGER.getWebDriver();
WebDriver driverWindow2 = WEB_DRIVER_MANAGER.getWebDriver("window2");

// Get the session key
String key1 = WEB_DRIVER_MANAGER.getSessionKey(driver);        // key1 contains 'default'

String key2 = WEB_DRIVER_MANAGER.getSessionKey(driverWindow2); // key2 contains 'window2'

2.2.6. Close a session

In most cases it is not needed to close your session manually. Testerra always closes all open session created in the thread at the end of a test method.

Anyway, to close active sessions manually, do the following:

// Shutdown a session by key
WEB_DRIVER_MANAGER.shutdownSession(String);

// Shutdown an explicit driver
WEB_DRIVER_MANAGER.shutdownSession(WebDriver);

// Close all active session in the current test context.
WEB_DRIVER_MANAGER.shutdownAllThreadSessions();

// Close all active session in all current parallel test threads.
WEB_DRIVER_MANAGER.shutdownAllSessions()

Please do not use Selenium provided methods to close WebDriver sessions. Have a further read in our known issue section: [Closing WebDriver sessions without using Testerra WebDriverManager].

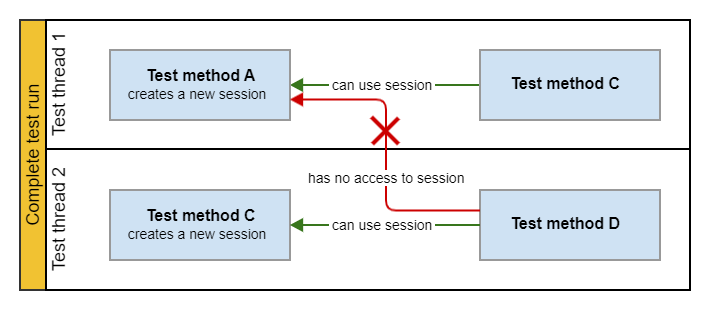

2.2.7. Shared sessions in one thread

You can reuse the WebDriver session over multiple methods in the same thread by setting the following property:

test.properties
tt.wdm.closewindows.aftertestmethods=false
Working with shared sessions
@Test
public void test1() {
    WebDriver driver = WEB_DRIVER_MANAGER.getWebDriver();
}

@Test
public void test2() {
    // You get the already opened session from test1
    WebDriver driver = WEB_DRIVER_MANAGER.getWebDriver();
}
You can only reuse the session in the current thread. If you run parallel tests, you have no access to the session between parallel test threads.
resuse webdriver sessions 1
Figure 1. Limitations of reusing shared sessions
Special behaviour for config methods (deprecated)

When you create a WebDriver in a setup method by is annotated with @Before…​ or @After…​, the session will not be closed after that method, even when tt.wdm.closewindows.aftertestmethods is true.

Reuse sessions in setup methods
@BeforeMethod
public void setupWebDriver() {
    // This WebDriver will not be closed, because its a setup method
    WebDriver driver = WebDriverManager.getWebDriver();
}

@Test
public void test1() {
    // You get the already opened session
    WebDriver driver = WebDriverManager.getWebDriver();
}

2.2.8. Shared sessions over different threads

To use a WebDriver session over different test threads, you need an exclusive session.

Exclusive sessions are identified by a special uuid, not by the standard session key.

Create exclusive browser sessions
private static String uuid = null;

@Test
public void test1() {
    WebDriver driver = WEB_DRIVER_MANAGER.getWebDriver();
    uuid = WEB_DRIVER_MANAGER.makeExclusive(driver);
}

@Test
public void test2() {
    // Get the exclusive session
    WebDriver driver = WEB_DRIVER_MANAGER.getWebDriver(uuid);
}
resuse webdriver sessions 2
Figure 2. Reuse a session in different test threads

An exclusive session has an unlimited lifetime. You need do close this session manually.

@AfterTest
public void cleanup() {
    WEB_DRIVER_MANAGER.shutdownSession(uuid);
}

2.3. WebDriver configuration

An WebDriver can be configured in the following ways.

A global configuration applies to all new sessions created by WebDriverManager. You can set a global configuration by.

2.3.1. Property configuration

Like shown above all session properties can be set in test.properties.

Property default Description

tt.browser

na.

Browser label, the following browsers are possible

  • firefox

  • chrome

  • ie

  • edge

  • safari

  • phantomjs

  • htmlunit

  • chromeHeadless

tt.browser.version

na.

Version label

tt.browser.setting

You can combine browser type and version as single string like firefox:65 (overrides tt.browser and tt.browser.version)

tt.baseurl

na.

URL of the first site called in a new browser session

tt.webdriver.mode

remote

Sets the webdriver mode. remote uses an external Selenium server

tt.selenium.server.url

na.

The complete URL to a remote Selenium server.
(e.g.: http://localhost:4444/wd/hub)

This setting overrides the following two properties.

tt.selenium.server.host

localhost

The host name of the remote Selenium server.

tt.selenium.server.port

4444

The port of the remote Selenium server.

tt.browser.maximize

false

Try to maximize the browser window.

tt.browser.maximize.position

self

Screen position for the window to maximize. If you have several screens and want to maximize the window on another screen than your default screen, you can choose between (left, right, top or bottom)

tt.display.resolution

1920x1200

Fall-back resolution, if maximize does not work.
For custom window browser size use driver.manage().window().setSize(new Dimensions(x, y))

tt.wdm.closewindows.aftertestmethods

true

If true, after every test method all open browser windows are closed.

tt.wdm.closewindows.onfailure

true

If true, after failed test methods all open browser windows are closed

tt.wdm.timeouts.seconds.selenium.command.stuck

300

Kills a stuck selenium command after this timeout

tt.wdm.timeouts.seconds.window.switch.duration

5

Maximum duration to wait for on a WebDriverUtils.findWindowAndSwitchTo() in seconds.

webdriver.timeouts.seconds.pageload

120

Defines the Selenium timeout for page load seconds.
(driver.manage().timeouts().pageLoadTimeout())

webdriver.timeouts.seconds.script

120

Defines the Selenium timeout for execution of async scripts in seconds.
(driver.manage().timeouts().setScriptTimeout())

2.3.2. Request configuration

If you only want to change the settings for one session, you can use WebDriverRequest. All defined attributes overrides the standard configuration.

If an attribute is not set, the global definition is used.
DesktopWebDriverRequest myRequest = new DesktopWebDriverRequest();
myRequest.setBaseUrl("http://example.org");
myRequest.setBrowser(Browsers.firefox);
myRequest.setBrowserVersion("66");
myRequest.setSessionKey("mysession");     // if no custom session defined, the default value 'default' is set

WebDriver driver = WEB_DRIVER_MANAGER.getWebDriver(myRequest);

2.3.3. Configure with WebDriverManagerConfig (@deprecated)

Since this WebDriverManagerConfig is actually a DesktopWebDriverRequest, you should prefer using that when creating a new WebDriver.

Some of the WebDriverManager settings you can change as follows

// tt.wdm.closewindows.aftertestmethods
WEB_DRIVER_MANAGER.getConfig().setShutdownSessionAfterTestMethod(true);

// tt.wdm.closewindows.onfailure
WEB_DRIVER_MANAGER.getConfig().setShutdownSessionOnFailure(false);

// tt.browser.maximize
WEB_DRIVER_MANAGER.getConfig().setMaximizeViewport(true);

setShutdownSessions() controls closing of browser windows after every test method in general, when its set to false, this also affects shouldShutdownSessionOnFailure() and shouldShutdownSessionAfterTestMethod().

Keep in mind, that after the complete test run a session shutdown is being forced.

You can reset the settings to the default values or defined in test.properties as follows

WEB_DRIVER_MANAGER.getConfig().reset();

2.4. Working with sessions

2.4.1. Get current session

Get the current session context with information about your WebDriver session.
WebDriver driver = WebDriverManager.getWebDriver();
Optional<SessionContext> sessionContext = WebDriverSessionsManager.getSessionContext(driver);

2.4.2. Switching windows

Sometimes you will come across testing websites with multiple windows, such as popups or something similar.

// Switch to a window by matching title
WebDriver webDriver = WEB_DRIVER_MANAGER.switchToWindowTitle(WebDriver webDriver, String windowTitle);

// Switch to a given window handle
WebDriver webDriver = WEB_DRIVER_MANAGER.switchToWindowHandle(WebDriver webDriver, String windowHandle);

// Switch to a window by a custom condition
Optional<WebDriver> optionalWebDriver = WEB_DRIVER_MANAGER.switchToWindow(WebDriver webDriver, webDriver -> webDriver.getCurrentUrl().contains("login"));

Assert.assertTrue(optionalWebDriver.isPresent(), "Login window not found");

3. Browser capabilities

You can customize your WebDriver session by setting capabilities in the following ways:

When creating a new WebDriver, these capabilities get merged together in this exact order.

3.1. Global capabilities

You can customize your browser session by setting capabilities for every browser type before the WebDriver has been initialized.

WEB_DRIVER_MANAGER.setGlobalCapability(CapabilityType.ACCEPT_INSECURE_CERTS, true);
WEB_DRIVER_MANAGER.removeGlobalCapability(CapabilityType.ACCEPT_INSECURE_CERTS);

Do NOT set browser capabilities with WebDriverManager like:

FirefoxOptions options = new FirefoxOptions();
options.addPreference("intl.accept_languages", "de-DE");
// This cannot be merged correctly!
WEB_DRIVER_MANAGER.setGlobalCapability(FirefoxOptions.FIREFOX_OPTIONS, options);

3.2. Request capabilities

Some WebDriverRequests support setting capabilities, like the DesktopWebDriverRequest.

WebDriverRequest myRequest = new DesktopWebDriverRequest();
myRequest.getDesiredCapabilities().put(CapabilityType.ACCEPT_INSECURE_CERTS, true);
WebDriver webDriver = WEB_DRIVER_MANAGER.getWebDriver(myRequest);

3.3. User agent configuration

The user agent configuration is most precise, because it provides explicit browser options based on the Selenium driver.

import eu.tsystems.mms.tic.testframework.useragents.FirefoxConfig;

WEB_DRIVER_MANAGER.setUserAgentConfig(Browsers.firefox, (FirefoxConfig) options -> {
    options.addPreference("intl.accept_languages", "de-DE");
});
Have a look into Browser specific knowledge for specific browser options.

3.4. Setting local capabilities

A local defined capability means its only available in the current test execution (current TestNG testmethod).

WebDriverManager.addThreadCapability(CapabilityType.ACCEPT_INSECURE_CERTS, true);

Have a look into [Useful browser capabilities] for specific browser options.

3.5. Proxy setup

If you want that the browser uses a proxy for the SUT, you can just configure that by default Selenium capabilities.

Make sure that your WebDriver supports the Proxy-Capability. For example the MicrosoftWebDriver for Legacy Edge does not support proxy setup (see Edge WebDriver Capabilities).
If you want to setup a proxy for the runtime environment but the browser, you have to follow the instructions at Using a proxy

The following code setups a proxy based on the System’s proxy configuration and a custom proxy.

import org.testng.annotations.BeforeSuite;
import org.openqa.selenium.remote.DesiredCapabilities;
import eu.tsystems.mms.tic.testframework.webdrivermanager.WebDriverManagerUtils;
import eu.tsystems.mms.tic.testframework.webdrivermanager.WebDriverProxyUtils;
import org.openqa.selenium.Proxy;

public abstract class AbstractTest extends TesterraTest {

    @BeforeSuite
    public void proxySetup() {
        WebDriverProxyUtils utils = new WebDriverProxyUtils();
        /**
        * Global browser proxy configuration
        */
        Proxy defaultProxy = utils.getDefaultHttpProxy();
        WEB_DRIVER_MANAGER.setGlobalCapability(CapabilityType.PROXY, defaultProxy);

        /**
        * Browser specific proxy configuration
        */
        Proxy otherProxy = utils.createHttpProxyFromUrl(
            new URL("http://proxyUser:secretPassword@my-proxy:3128")
        );
        WEB_DRIVER_MANAGER.setUserAgentConfig(Browsers.chrome, (ChromeConfig) options -> {
            options.setProxy(otherProxy);
        });
    }
}

4. UiElements

4.1. Overview

UiElements are representations of elements of the tested website, like buttons, search fields, checkboxes or even just DOM elements.

UiElements are not, but based on the Selenium WebElement and add more functionality to them. Since a UiElement is just a pointer to a locator, it’s using the same definition as WebElements By (Selenium docs).

UiElements are self refreshing: Every action on it will trigger a find call, so the current state is always up to date when the requested action takes place. There is de facto no StaleElementReferenceException on UiElements like it could be when using vanilla WebElements.

4.2. Creation

4.2.1. Create default UiElement

For every UiElement you need an implementation of the UiElementFinder interface (like PageObjects) and a locator (Selenium docs).

UiElement myElement = find(By.id("elementId"));
UiElement button1 = find(By.name("button"));
UiElement textOutputField = find(By.xpath("//p[@id='99']"));
A GuiElement always points to the first element found by the given locator. Even when your locator would return multiple elements, it just represents one. You can make your locators to force uniqueness or use element lists.

4.2.2. Create SubElements

The UiElement also implements UiElementFinder. Elements will only be searched in the DOM tree below the given parent element on which the method was called.

UiElement upper = find(By.name("upperElement"));

// Create the sub elements
UiElement lower = upper.find(By.name("lowerElement"));
UiElement lower = upper.find(By.xpath(".//p[@id='element']")); (1)
UiElement lower = upper.find(By.xpath("//p[@id='element']")); (2)
UiElement lower = upper.find(By.xpath("./p[@id='element']")); (3)
1 Find any matching descendant
2 Corrects the selector prefix to './/'
3 Find any matching child

4.2.3. Implement UiElementFinder

When you don’t want to use the PageObject pattern, you can instantiate an UiElementFinder on your own.

import eu.tsystems.mms.tic.testframework.pageobjects.UiElementFinder;
import eu.tsystems.mms.tic.testframework.testing.TesterraTest;
import eu.tsystems.mms.tic.testframework.testing.UiElementFinderFactoryProvider;
import eu.tsystems.mms.tic.testframework.testing.WebDriverManagerProvider;

class MyTest extends TesterraTest implements
    UiElementFinderFactoryProvider,
    WebDriverManagerProvider
{
    protected UiElementFinder createFinder() {
        return UI_ELEMENT_FINDER_FACTORY.create(WEB_DRIVER_MANAGER.getWebDriver());
    }

    @Test
    public void test() {
        UiElementFinder finder = createFinder();
        UiElement myElement = finder.find(By.id("elementId"));
        UiElement button1 = finder.find(By.name("button"));
        UiElement textOutputField = finder.find(By.xpath("//p[@id='99']"));
    }
}

4.2.4. Advanced UiElement locating

The UiElementFinder extends the LocatorFactoryProvider interface, which provides a LOCATE factory that supports more features than standard Selenium By.

Locate unique elements

If you want to make sure, that your element is unique.

UiElement myElement = find(LOCATE.by(By.id("elementId")).unique());

This will throw an exception, if not exact one WebElement has been found.

Locate displayed items only
UiElement myElement = find(LOCATE.by(By.xpath(".//button")).displayed());
Prepared xpath expressions

Using prepared expressions makes complex selectors more readable.

PreparedLocator byText = LOCATE.prepare("//button[text()='%s'])");
PreparedLocator byClass = LOCATE.prepare("//%s[contains(@class, '%s')][%d]");

UiElement loginButton = find(byText.with("Login"));
UiElement logoutButton = find(byClass.with("button", "btn-logout", 1));
Filtering elements

You can also filter elements during find.

Locator byText = LOCATE.by(By.xpath("//button"))
                    .filter(webElement -> webElement.getText().equals("Open again"));

UiElement buttonContainsText = find(byText);
Default locator configurator

When you want to preconfigure all locators, you can use

LOCATE.setConfigurator(locator -> {
   // Configure your locator here
});
GuiElements inside frames

4.2.5. UiElements inside frames

Accessing WebElements inside frames requires changing the active frame before any action. UiElements do that automatically as long you identify every <frame> or <iframe> as own element.

UiElement frame1 = find(By.id("frame1"));

// frame2 is child of frame1
UiElement frame2 = frame1.find(By.id("frame2"));

// target is child of frame2 which is child of frame1,
UiElement target = frame2.find(By.id("target"));

And easier way is to use the findDeep method, which search for the element recursive in the frame hierarchy every time.

// in this case the frames are searched recurse automatically
UiElement target = findDeep(By.id("target"));

4.2.6. Element lists

The UiElement is like a pointer to the first element of the given locator. But if you want to retrieve a list of all found elements by the given locator, you can use the UiElementList like the following.

<div>First</div>
<div>Second</div>
<div>Third</div>
UiElement div = find(By.tagName("div"));
div.list().first().expect().text("First");
div.list().last().expect().text("Third");

They can also be iterated and streamed.

div.list().forEach(uiElement -> {});
div.list().stream().forEach(uiElement -> {});

4.2.7. Empty elements

To prevent null pointers or any other exception that will break you program flow, you can use and empty UiElement using createEmpty() of UiElementFinder.

UiElement empty = createEmpty(Locator);

All interactive operations on this element will do nothing, all wait methods will be false and all assertions will fail.

4.2.8. Sensible Data

Sensible data, such as passwords, can be displayed obfuscated in the logs during the actions type and sendKeys.

UiElement sensibleElement = findById("secret").sensibleData();

Only the placeholder * is logged in the report instead of the real value.

4.2.9. Trace elements hierarchy

In most cases, elements are part of a view hierarchy. The Nameable interface provides some methods to retrieve this information.

Nameable parent = element.getParent();

A parent could be any PageObject like UiElement, Component or Page.

Be aware that getParent() could return NULL, when the element has been created without a hierarchy or the element is a Page. So you should always perform a null or instanceof check.

If you want to trace the hierarchy beginning from top-down, you can use the traceAncestors() method.

element.traceAncestors(ancestor -> true);

When the given Predicate return FALSE, the tracing will stop.

This will not supply the calling element.

4.3. XPath builder

The static XPath class helps you to build failsafe xPathes optimized for HTML. But it’s restricted to search elements top-down.

This is what the basic syntax looks like

UiElement div = find(XPath.from("div"));

But it supports many other features you need when you select elements from the DOM, like first and last element.

XPath.from("tr", 1);
XPath.from("tr", -1);

The xPath is generated greedy by default. When you create an xPath like

XPath.from("body").select("div");

this equivalent result would be //body//div

If you want to restrict the selection to a child element, use the / prefix:

XPath.from("/body").select("/div");

which equivalent would be /body/div

It is also possible to pass groups in the from method only.

XPath.from("(//iframe|//frame)");

4.3.1. Elements that have classes

XPath.from("div").classes("navigation", "header");

This will find elements like

<div class="header large navigation">

but not

<div class="navigation-header">

4.3.2. Select an element that encloses another element

XPath.from("nav")
    .classes("mobile")
    .enclose("/div")
        .classes("navigation", "header");

This will find the <nav> element

<nav class="mobile">
    <div class="navigation header"></div>
</nav>

4.3.3. Select an element by its text

XPath.from("*").text().hasWords("Login", "here");
XPath.from("*").text().contains("first");
XPath.from("*").text().endsWith("here ");

This will find elements like

<a> Login first
    here </a>

4.3.4. Select by attributes

XPath.from("*").attribute("src").endsWith(".png");

This will find elements like

<img src="http://example.com/image.png"/>

4.3.5. Select a sub element

XPath.from("form")
    .attribute("name", "login")
    .select("button")
        .text().hasWords("Login here");

This will find the <button> element

<form name="login">
    <button> Login here * </button>
</form>

4.4. Checks

Checks if the element is present in the DOM

element.expect().present(boolean);

Checks if the element is present in the Viewport, if it’s visible by it’s display and visibility style properties and it’s width and height are both greater than 0.

element.expect().displayed(boolean);

Checks if the element is displayed and if it’s partially or complete visible in the scroll area of the Viewport.

element.expect().visible(boolean complete).is(boolean);
It doesn’t relate to opacity or z-index style properties. If you need to test the perceptually visibility to the human eye, you should consider to implement an image based Layout Check.

4.4.1. Standard WebElement checks

// The following methods are calling the standard webelement method
element.expect().enabled(boolean);
element.expect().selected(boolean);

// Tries to find out if an element could be selected.
element.expect().selectable(boolean);

4.5. Assertions

UiElements provide many kinds of assertion methods to verify your elements.

If an assertion fails, it will make the whole test fail and abort. You can control that by using a TestController

UiElement element = find(By.id("button"));

// Expect the element text
element.expect().text("Hello World");
element.expect().text().contains("World").is(boolean);
element.expect().text().map(String::trim).startsWith("Hello").is(boolean);

// Expect the existence of an attribute
element.expect().attribute(Attribute.DISABLED).isNot(null);

// Expect the value of an input element matches an regular expression
element.expect().value().matches("^hello\\s.orld").is(boolean);

// CSS property checks
element.expect().css("display").is("none");

// CSS class checks
element.expect().classes("active", "button").is(boolean);

4.5.1. Layout assertions

UiElement can be checked for their relative layouts.

UiElement left = find(By.id("left"));
UiElement right = find(By.id("right"));

left.expect().bounds().leftOf(right).is(true);

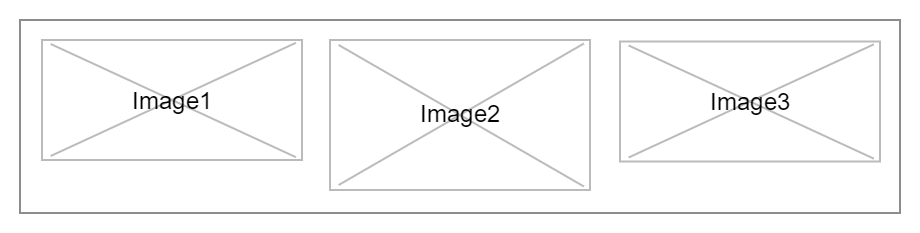

GuiElement layout comperator
Figure 3. A simple example for a layout check
UiElement image1 = find(By.xpath("//..."));
UiElement image2 = find(By.xpath("//..."));
UiElement image3 = find(By.xpath("//..."));

// Assertions are true
image1.expect().bounds().leftOf(image2).is(true);
image1.expect().bounds().fromTop().toTopOf(image2).is(0);
image1.expect().bounds().fromBottom().toBottomOf(image3).is(0);

// Assertions are false
image1.expect().bounds().fromBottom().toBottomOf(image2).is(0);

4.6. Actions

An UiElement provides a variety of action methods. Beside the known WebElement methods there are some more useful methods to interact with the web site.

4.6.1. Click on elements

UiElement element = find(By.id("button"));

element.click();
element.doubleClick();
element.contextClick();
If you have troubles using these methods, take a look to the fallback solution Desktop WebDriver utilities.

4.6.2. Enter text

UiElement element = find(By.id("input"));

// Enters the given text in a input or textfield.
// Any old values are automatically deleted before input.
// The type method has a value check. If the given string is NULL or empty, the method does nothing.
element.type("my text");

// The standard Selenium method is used.
// You can also use the Selenim Keys class to enter special keys.
element.sendKeys("my text");
element.sendKeys("my text" + Keys.ENTER);

// Delete the content of an input field.
element.clear();

4.6.3. Use select boxes

UiElement element = find(By.id("select"));

// Get the Select WebElement of a UiElement
element.findWebElement(webElement -> {
    Select selectElement = new Select(webElement);

    // You can use all Selenium Select methods to interact.
    select.selectByIndex(2);
    select.selectByVisibleText("option");
    List<WebElements> list = select.getAllSelectedOptions();
});

4.6.4. Use check boxes

UiElement element = find(By.id("checkbox"));

// Check and uncheck the check box
element.select();
element.deselect();

// true = check, false = uncheck
element.select(boolean);

4.6.5. Scrolling

You can scroll the browser viewport until the element is in the middle viewport if possible.

element.scrollIntoView();

// Lets offset pixel distance from the top of the viewport
element.scrollIntoView(new Point(0, -20))

4.6.6. Mouse over

You can simulate the mouse pointer is moved over an element.

element.hover();
If you have troubles using this method, take a look to the fallback solution Desktop WebDriver utilities.

4.6.7. Drag and drop actions

With the utils class MouseActions you can execute a drag-and-drop actions. Source and target UiElements can be located in different frames.

UiElement source = find(By.id("elem1"));
UiElement target = find(By.id("elem2"));

MouseActions.dragAndDropJS(source, target);

// You can add one or more DragAndDropActions
MouseActions.dragAndDropJS(source, target, DragAndDropOption.CLICK_AFTER_RELEASE);

// This method provides a swipe of an element to a relative position from the element.
int offsetX = 50;   // Pixel
int offsetY = 125;  // Pixel
MouseActions.swipeElement(source, offsetX, offsetY);

4.6.8. Highlight elements

This method draws a coloured frame around the UiElement.

element.highlight();

// Or by a given color
element.highlight(new Color(int, int, int));

4.7. Waiters

In testing practice the test automation code must tolerate delays caused e.g. by page loading or javascript activities when checking conditions on UiElements.

If the condition (which is checked continuously) is met within the timeout then the wait methods return true.

Otherwise, after the timeout has passed they return false without any further action or assertion.

boolean result;
result = element.waitFor().displayed(boolean);

// Overrides preconfigured internal timeout
result = element.waitFor(int seconds).displayed(boolean);

4.8. Access the WebElement

UiElement provides all Selenium methods when retrieving the WebElement.

The given HTML snippet
<a href="newpage.html" style="font-size: 20px;">My link</a>
Standard attributes
UiElement element = find(By.xpath("//a"));

element.findWebElement(webElement -> {
    String text = webElement.getText();                   // returns "My link"
    String attr = webElement.getAttribute("href");        // returns "newpage.html"
    String name = webElement.getTagName();                // returns "a"
    Point point = webElement.getLocation();               // returns the top left corner of the element
    Dimension dim = webElement.getSize();                 // returns width and heigth of the element
    Rectangle rect = webElement.getRect();                // returns rectangle with location and size
    String value = webElement.getCssValue("font-size");   // returns "20px"
});

4.9. Internals

The find mechanism for a UiElement in Testerra works different as in plain Selenium. When using a constructor for a UiElement instantiation, Testerra internally will add some facades / decorators to make things easier. The most important decorator that is added by default is the GuiElementCoreSequenceDecorator -which adds a sequence to all method calls against a GuiElement.

Example: When calling the isPresent() method on a UiElement the added GuiElementSequenceDecorator will fire up an internal find() call to the GuiElement and therefore a find() call to the underlying Selenium WebElement. But instead of calling the find() method once, it will execute this call in a default sequence every 500ms.

Therefor the property tt.element.timeout.seconds defined in test.properties will be used as a hard timeout for this sequence. If the find() does not run successfully after the defined timeout it will fail.

5. PageObjects

5.1. Overview

5.1.1. What is a page object?

A page objects represents a HTML pages and or a subpage. It contains UiElements with describe the actual page and methods to provide actions on them.

In your test you only uses the provided actions of your page like an API. The page object himself uses the UiElements as an API to interact with the website.

5.1.2. Navigation Principle

In a regular Web Application there is a defined navigation flow. This means there are pages with actions on it that let you navigate to other pages.

In the example below we have a search dialog with a search action on it that lets you navigate to a ResultPage with the search result. When a search is performed the browser will navigate to the ResultPage. In your page you create a new object of your next page.

This new page object is used for the next steps in your test.

PageFlowExample
Figure 4. Example of a page flow

5.1.3. Example

The following page contains two UiElements and one method for a user action 'search a string'.

Within the method search the defined UiElements are used to execute a search.

The annotation Check marks the UiElements as mandatory for the page. Testerra automatically verifies these elements when this page is instantiated (Check Annotations).

public class SearchPage extends Page {

    @Check
    private final UiElement searchButton = find(By.name("searchButton"));

    @Check
    private final UiElement inputField = find(By.name("inputField"));

    // constructor
    public SearchPage(WebDriver driver) {
        super(driver);
    }

    // search action on page
    public ResultPage search(String text) {
        inputField.type(text);
        searchButton.click();
        return createPage(ResultPage.class);
    }
}

The following lines demonstrate how to use page objects in your test method.

public class TestClass extends TesterraTest implements PageFactoryProvider {

    @Test
    public void myTest() {
        HomePage homePage = PAGE_FACTORY.createPage(HomePage.class);
        SearchPage searchPage = homePage.openSearch();
        ResultPage resultPage = searchPage.search("search text");
        resultPage.assertResultSetIsNotEmpty();
        homePage = resultPage.close();
    }
}

5.2. Instantiation

5.2.1. PageFactory

Pages need to be created initially via. PageFactory interface, which will be provided by the PageFactoryProvider as PAGE_FACTORY instance.

When the page is instantiated, Testerra automatically checks its annotated elements.

HomePage homePage = PAGE_FACTORY.createPage(HomePage.class);

// Or use an explicit WebDriver
HomePage homePage = PAGE_FACTORY.createPage(HomePage.class, WebDriver otherWebDriver);

5.2.2. Inline creating

Once you created a page, you can create other pages directly from this page, to keep track of the same WebDriver.

OtherPage otherPage = homePage.createPage(OtherPage.class);

5.2.3. Optional pages

You can also try to create a page, when you want to handle unexpected redirects at some point.

homePage.waitForPage(OtherPage.class).ifPresent(otherPage -> {});
homePage.waitForPage(OtherPage.class, int seconds).ifPresent(otherPage -> {});

5.2.4. Lifecycle

When a page has been created and all Check Annotations have been performed, the pageLoaded() method will be called, which can be used to perform some additional initializing without any test related interaction.

class MyPage extends Page {

    @Override
    protected void pageLoaded() {
        super.pageLoaded();

        // additional actions
    }
}

5.2.5. Page Prefixes (deprecated)

Using page prefixes is an uncommon feature and therefore marked as @deprecated

Page Prefixes can influence which concrete classes get instantiated by the PageFactory. They work together with a inheritance scheme of page classes. This can be useful if there is a base page which can come in different concrete variations. Example:

There is a BaseClass which inherits from the Page class and contains the basic functionality of a page. Then the Page can come in 2 different variations. We can represent this as Variation1BaseClass and Variation2BaseClass. They both inherit from BaseClass. Before instantiation, we can set the prefix using the PageFactory. Then we instantiate it and we can get our variation of the base class.

PAGE_FACTORY.setGlobalPagesPrefix("Variation1");
//this actualy creates a Variation1BaseClass
BaseClass baseClass = PAGE_FACTORY.createPage(BaseClass.class);

Default is no prefix.

Usage:

// Set a global Prefix
PAGE_FACTORY.setGlobalPagesPrefix("prefix");

// Set a thread local prefix. See next row about cleaning this prefix.
PAGE_FACTORY.setThreadLocalPagesPrefix("prefix");

// The thread local pages prefix is not cleared automatically,
// be sure to always set the correct one or clear it after using.
PAGE_FACTORY.removeThreadLocalPagePrefix();

5.3. Components

You can improve your PageObjects by using components. Components are like they are in actual web development environments: Containers with functionality. With components, you don’t need to try to create reusable PageObjects in a complex inheritance hierarchy, you can follow the pattern that composition before polymorphism.

In Testerra, components are hybrids of both UiElements and PageObjects. They can contain more UiElements and even Components, but they don’t provide features restricted to Pages or UiElements and their finder API is restricted to its root container element by default.

You can create a component like

import eu.tsystems.mms.tic.testframework.pageobjects.AbstractComponent;

public class MyComponent extends AbstractComponent<MyComponent> {

    @Check
    UiElement button = find(By.tagName("button"));

    public MyComponent(UiElement rootElement) {
        super(rootElement);
    }
}

To instantiate components, use the createComponent() method the same way as you create pages.

public class MyPage extends Page {

    @Check
    MyComponent component = createComponent(MyComponent.class, find(By.className("container")));
}

5.3.1. Component lists

Since components are hybrid UiElements, they can also act as lists.

UiElement table = find(By.tagName("table"));
TableRow rows = createComponent(TableRow.class, table.find(By.tagName("tr")));

rows.list().forEach(row -> {
    row.getNameColumn().text().contains("Hello").is(true);
});

5.4. Check Annotations

The @Check annotation is used to verify the actual presence of an element on the site. All UiElements that are marked with the @Check annotation are automatically checked when instantiated by the PageFactory.

In the example, the first UiElement has the @Check annotation, the second doesn’t. The result is, that the presence of the first element will be checked by the constructor, the second won’t. If a checked element is not found, the constructor will throw a PageFactoryException.

@Check
private UiElement checked = find(By.name("checked"));
//no @Check here
private UiElement unchecked = find(By.name("unchecked"));

The @Check annotation will use the default CheckRule defined in test.properties. It is also possible to overwrite the default CheckRule for a single @Check annotation.

@Check(checkRule = CheckRule.IS_PRESENT)
private UiElement uiElement;

Change the check rules for the whole project (global) with the following:

test.properties
tt.guielement.checkrule=IS_PRESENT

Available CheckRules are

  • IS_DISPLAYED

  • IS_NOT_DISPLAYED

  • IS_PRESENT

  • IS_NOT_PRESENT

The default is IS_DISPLAYED.

With the optional attribute, the check only adds an optional assertion to the report. The test will not be interrupted at this position.

@Check(optional = true)
private UiElement uiElement;

You can also define a special error message with the prioritizedErrorMessage attribute.

@Check(prioritizedErrorMessage = "My error message.")
private UiElement uiElement;

Use the timeout attribute to define a specific timeout only for that element to optimize check timeouts on Page instantiation. This overrides the Page timeout setting.

@Check(timeout = 60)
private UiElement uiElement;

5.5. Timeout Setting

The checks are performed with a timeout. The default timeout is set by the tt.element.timeout.seconds property.

With the following annotation, the check can be optimized for all UiElements during page instantiation:

@PageOptions(elementTimeoutInSeconds = 60)
public class ExamplePage extends Page {
	// insert your code
}

5.6. Restrict element access

The PageObject pattern encapsulates UiElements for all activities on the page. Thats why every element should be private accessible by the page only. But for testing purposes, it could be useful to allow access to some elements. In this case, you can create public methods and return the element casting to TestableUiElement.

public class MyPage extends Page {
    private UiElement saveButton = find(By.tagName("button"));

    public void performSave() {
        saveButton.click();
    }

    public TestableUiElement getSaveButton() {
        return saveButton;
    }
}

In the test, you can perform assertions without breaking the PageObject pattern.

@Test
public void testSaveFunctionality() {
    MyPage page = getPage();
    page.performSave();
    page.getSaveButton().expect().text("Saved");
}

Excecution and controlling

6. Test controlling

The TestControllerProvider interface provides the TestController instance CONTROL for controlling the test and assertion flow.

6.1. Collected assertions

Collecting assertion means, that a failing assertion will not abort the test method, but it will throw an exception at the end of the test method. So you have a chance to validate many more aspects in one test run.

CONTROL.collectAssertions(() -> {
    element.expect().text("Hello World");
    page.performLogin();
    Assert.assertEquals("hello", "world");
});

6.2. Optional assertions

Optional asserts do not let the test fail, but the assertion message will be added to the log with loglevel WARN and will result in an minor failure aspect.

CONTROL.optionalAssertions(() -> {
    element.expect().text("Hello World");
    page.performLogin();
    Assert.assertEquals("hello", "world");
});

6.3. Change internal timeout

To change the timeout for internal assertions, you can override it for a specified block.

CONTROL.withTimeout(int seconds, () -> {
    element.expect().text("Hello World");
}

Please mind that you also can pass already implemented methods.

@Test
public void test_something_fast() {
    CONTROL.withTimeout(0, this::test_something);
}
withTimeout() overrides all internal timeouts except the explicit set timeout in waitFor(int seconds) methods.

6.4. Retries

In some situations you cannot rely on single assertions or waits anymore and need to continue trying something out before performing an alternative solution. Use control methods for repeating a couple of actions within a loop until a timeout has reached.

For example, this retry block tries to click a button until it’s disabled.

CONTROL.retryFor(int seconds, () -> {
    button.click();
    button.expect().enabled(false);
});

You can also perform something when the retry block fails.

CONTROL.retryFor(int seconds,() -> {
    element.expect().text(String);
}, () -> {
    element.getWebDriver().reload();
});

You can also combine these control features.

CONTROL.retryFor(int seconds, () -> {
    CONTROL.withTimeout(int seconds, () -> {
        button.click();
        uiElement.scrollIntoView();
        uiElement.expect().visible(boolean complete).is(boolean);
    }
);

6.5. Waits

If you need to wait for something to happen. You can use the control method waitFor which does the same as retryFor but without throwing any exception.

boolean loginOpened = CONTROL.waitFor(int seconds, () -> {
    WEB_DRIVER_MANAGER.switchToWindowTitle("Login");
});

7. Regular Assertions

When implementing the AssertProvider interface, you get an instance named ASSERT, which provides more features than standard TestNG Assert

You can use this interface for assertions they cannot be covered by the UiElement.

import eu.tsystems.mms.tic.testframework.testing.AssertProvider;

public class MyTest extends TesterraTest implements AssertProvider {

    @Test
    public void test() {
        ASSERT.assertContains("Hello world", "planet");
    }
}

This will throw an AssertionError with the message Expected [Hello world] contains [planet].

You can also add some more detailed information to the subject.

ASSERT.assertContains("Hello world", "planet", "the greeting");

Which will result in Expected that the greeting [Hello world] contains [planet]

Please take a look into the Assertion interface for a full feature overview.

8. Test execution

Testerra has several features to handle and adjust a test execution, which are described in the following paragraphs.

8.1. Conditional behaviour

For managing the execution behaviour of tests in suites there are means to skip tests and avoid closing browser windows after failures.

test.properties
# all browser windows remain open after first failure, default = false
tt.on.state.testfailed.skip.shutdown=true

# skip all tests after first failure, default = false
tt.on.state.testfailed.skip.following.tests=true

8.2. Failure Corridor

This mechanism is used to define the test goal of test runs so that it only fails with an invalid failure corridor.

This feature is enabled by default with the following property.

tt.failure.corridor.active=true

With an enabled failure corridor, you need to define the maximum amount of failures per weight:

test.properties
tt.failure.corridor.allowed.failed.tests.high=0
tt.failure.corridor.allowed.failed.tests.mid=1
tt.failure.corridor.allowed.failed.tests.low=2

If you do not define any failure corridor, the default value 0 is used for all three levels.

To change the weight for each test, just annotate it with @FailureCorridor, where High is default.

Examples of method weighting
// This testcase is marked with a high weight.
@FailureCorridor.High
@Test
public void test1() throws Exception {
    Assert.fail();
}

// This testcase is not marked, but the default weight is high.
@Test
public void test2() throws Exception {
    Assert.fail();
}

// This testcase is marked with a middle weight.
@FailureCorridor.Mid
@Test
public void test3() throws Exception {
    Assert.fail();
}

// This testcase is additional marked with @Fails.
// So the test result is ignored by the Failure corridor.
@Fails
@FailureCorridor.Mid
@Test
public void test4() throws Exception {
    Assert.fail();
}

// This testcase is marked with a low weight.
@FailureCorridor.Low
@Test
public void test5() throws Exception {
    Assert.fail();
}

8.3. Element Highlighting

8.3.1. Demo mode

In the demo mode actions on pages are marked with distinctive coloured frames around the element of the action. This mechanism is set by a property

test.properties
# activate demo mode, default = false
tt.demomode=true

The following colours are used for highlighting

  • red: failed visibility checks and asserts

  • green: successful visibility checks and asserts

  • yellow: mouseOver

  • blue: click

8.4. Expected Fails

For known issues on the SUT the annotation @Fails can used to mark a test method as failing. These test cases are marked as Expected failed separately in the report.

If tests are passed again, you get a note in the report to remove the Fails annotation.

@Test
@Fails()
public void testItWillFail() {
    Assert.assertTrue(false);
}

The result is technically still a failure and only visually elevated to facilitate the evaluation of the report.

Please keep in mind that @Fails has an impact to Failure Corridor.

@Fails should not be used in conjunction with TestNG @DataProvider because the detected failure is ambiguous and might not be valid for all provided data.

8.4.1. Add additional information

You can add additional information to describe the cause in more detail. All information are added to the report.

@Test
@Fails(description="This test fails for reasons")
public void testItWillFail() {
    Assert.assertTrue(false);
}
Table 1. Possible attributes for the Fails annotation
Attribute Description

description

Give more details about the failure.

ticketString

Define a bug ticket ID or URL as a String value.

intoReport

If true the failing test is shown as Failed instead of Expected Failed (default: false).

validFor

Define the conditions of the expected failed.

8.4.2. Define conditions

You can specify some conditions for expected fails. Only if all conditions are true, the test is marked as Expected failed, otherwise as Failed.

The conditions are based on properties specified in test.properties
# test.properties
environment=test
country=de
Usage of validFor in the @Fails annotation
@Test
@Fails(description = "Failing for environment 'test' and country 'de'", validFor = {"environment=test", "country=de"})
public void testExpectedFailed() {
    Assert.fail();
}

If the test is executed with other values of the properties (like country=uk) the test will marked as Failed.

8.5. Retry analyzer

8.5.1. Common

Testerra provides an adjustable mechanism to automatically retry failed tests.

The default retry count is 1. Each failed method is executed exactly one more time, when matching the retry criteria. Retried methods are shown in the section Retried of the report.

You can change the default with the following property.

test.properties
tt.failed.tests.max.retries=1
The retry mechanism always ignores testcases with a valid Fails annotation.

8.5.2. Specific retry count for test methods

You can change the retry count for specific test methods.

@Test()
@Retry(maxRetries = 2)
public void testMethod() {
    ...
}

8.5.3. Specific retries

Testerra can also retry failed methods when matching certain criteria. The filtering process contains of checks of classes and messages matching the thrown Exception, which are set within the test.properties file.

test.properties
# set additional classes that engage a retry,
# instances of TimeoutException are always retried
tt.failed.tests.if.throwable.classes=java.sql.SQLRecoverableException

# set additional messages of Throwable that engage a retry,
# by default the following messages are evaluated
#           "Error communicating with the remote browser. It may have died",
#           "was terminated due to TIMEOUT",
#           "was terminated due to SO_TIMEOUT",
#           "The requested URL could not be retrieved",
#           "Squid is unable to create a TCP socket"

tt.failed.tests.if.throwable.messages=failed to connect, error communicating with database

8.5.4. Customize retry behaviour

For further adjustment additional analyzers can be registered expanding the default behaviour.

Defining AdditionalRetryAnalyzer for InstantiationException
// custom Retryanalyzers need to implement the functional interface AdditionalRetryAnalyzer
public class InstantiationExceptionRetryAnalyzer implements AdditionalRetryAnalyzer {

    final String message = "failed instantiation";

    @Override
    public Throwable analyzeThrowable(Throwable throwable, String tMessage) {
        if (throwable instanceof InstantiationException) {
            if (tMessage != null) {
                final String tMessageLC = tMessage.toLowerCase();
                boolean match = tMessageLC.contains(message);
                if (match) {
                return throwable;
                }
            }
        }

        return null;
    }
}
Register your retry analyzer
public class AbstractTest extends TesterraTest {

    static {
        // register the additional Analyzer,
        // which checks for "InstantiationException" and the message "failed instantiation"
        RetryAnalyzer.registerAdditionalRetryAnalyzer(new InstantiationExceptionRetryAnalyzer());
    }

}

8.5.5. @NoRetry

With this annotation the Retry Analyzer won’t retry these methods if previously failed. This is characteristically shown in the report by the badge NoRetry.

You can customize the NoRetry annotation with the attributes name and color.

Table 2. Possible attributes for the NoRetry annotation
Attribute Description

name

Changes the shown text in the report. Default is No Retry

color

Change the background color of the shown text. Default is grey.
Values need to be valid for HTML colors like:

  • name of the color, e.g. red

  • RGB values, e.g. rgb(255, 236, 139)

  • RGBA values, e.g. rgba(252, 156, 249, 0.75)

  • HSL values, e.g. hsl(217, 97%, 57%)

  • Hex values, e.g. #57c0ff

An example with customization of NoRetry
@Test()
@NoRetry(name = "No retry because it's not allowed.", color="rgb(255, 236, 139)")
public void testMethod() {
    ...
}

8.6. WebDriverWatchDog

The WebDriverWatchDog is your vigilant pet watching the test execution and reacting on blocked tasks. With two properties it is set up.

test.properties
# activate watchdog, default = true
tt.watchdog.enable = true

# timeout in seconds after the test execution is terminated, default = 300
tt.watchdog.timeout.seconds = 500

8.6.1. How does it work?

With the first Usage of WedDriverManager the WebDriverWatchDog is initiated. It internally starts a Thread running in parallel to the current test execution checking the stacktrace every ten seconds for stacktrace entries with thread name "Forwarding" containing an Element "java.net.SocketInputStream". These potentially blocking stacktrace entries are updated every time found. Upon reaching the maximum timeout of 500 seconds the whole test execution is terminated with exit code 99 and a readable error output in your log.

A valid report is always generated.

8.7. Annotations for Report adjustment

To improve the readability and clarity of the report there are several annotations for marking the test class and test methods, which are described in the following paragraphs as well as in @Fails, @Retry, @InDevelopment and @NoRetry.

8.7.1. @New

This marks a test method as New, which is shown with this text in the report. Customization is possible with two attributes name and color in the annotation.

  • name: change the shown text in the report. Default is New

  • color: change the background color of the shown text. Default is cadetblue. Values need to be valid for html colors.

    • name of the color, e.g. red

    • RGB values, e.g. rgb(255, 236, 139)

    • RGBA values, e.g. rgba(252, 156, 249, 0.75)

    • HSL values, e.g. hsl(217, 97%, 57%)

    • Hex values, e.g. #57c0ff

8.7.2. @ReadyForApproval

This marks a test method as Ready For Approval, which is characteristically shown with this text the report. Customization is possible with the two attributes name and color in the annotation.

  • name: change the shown text in the report. Default is Ready For Approval

  • color: change the background color of the shown text. Default is indianred. Values need to be valid for html colors.

See @New for explanation.

8.7.3. @SupportMethod

This marks a test method as Support Method, which is characteristically shown with this text the report. Retests won’t skip these methods if previously passed. Customization is possible with the two attributes name and color in the annotation.

  • name: change the shown text in the report. Default is Support Method

  • color: change the background color of the shown text. Default is #848282. Values need to be valid for html colors.

See @New for explanation.

8.7.4. @InfoMethod

Methods marked with this annotation are shown in the section Info of the report.

8.7.5. @TestClassContext

With this annotation you can set the test context for the given test class. There two attributes for adjustments.

  • name: name of the context, default = ""

  • mode: TestClassContext.Mode.ONE_FOR_ALL or TestClassContext.Mode.ONE_FOR_EACH, default = TestClassContext.Mode.ONE_FOR_ALL

The Executed tests are then shown in the classes overview of the report as a entry labeled with name from @TestClassContext.

8.7.6. @InDevelopment

This aforementioned annotations is further adjustable with the two attributes name and color.

  • name: change the shown text in the report. Default is In Development

  • color: change the background color of the shown text. Default is #a7a5a5. Values need to be valid for html colors:

    • name of the color, e.g. red

    • RGB values, e.g. rgb(255, 236, 139)

    • RGBA values, e.g. rgba(252, 156, 249, 0.75)

    • HSL values, e.g. hsl(217, 97%, 57%)

    • Hex values, e.g. #57c0ff

8.8. Dry Run

8.8.1. Overview

With this execution mode all methods marked with TestNG Annotations are only called but their code isn’t executed, hence the name dry run. It’s designed to simply check the callstack of TestNG related methods without executing their logic, e.g. to find missing method calls in your test setup. For using this you just need to set the following property.

test.properties
# activate the dry run, default = false
tt.dryrun=true

The report indicates a dry run with the suffix Dry Run in the headlines of each section.

The rest is visually identical to a normal run.

All called methods are shown, but probably as passed. With a closer look into the report details you will just notice a really low test duration, something below one second.

8.8.2. @DismissDryRun

When this is annotated at a method it will be executed completely, regardless of the value of tt.dryrun. There is no dedicated visual elevation for these methods in the report.

8.9. JVMMonitor

The JVMMonitor is the Observer of the hardware utilization for memory and cpu. With the start of a test while using the TesterraListener the latter implicitly starts the JVMMonitor. Thus a concurrent thread for monitoring purposes only is initiated next to the actual test execution. Every ten seconds the following parameters are logged

  • JVM Memory usage in MB

  • JVM Memory reserved in MB

  • JVM CPU usage in per cent

The JVMMonitor is automatically terminated after the test execution and a graph showing the memory consumption is put into the report.


Testerra Features

9. Modules

9.1. BrowserUp Proxy

BrowserUp Proxy (BUP) is a simple HTTP proxy utility developed by browserup.com. It offers functionality to track, manipulate and modify HTTP requests and responses, as well as capture HTTP traffic for analysis.

Testerra offers a simple integration to spin multiple local proxy servers or manage remote proxy servers via HTTP API.

9.1.1. Project setup

Latest release Maven Central

build.gradle
compile 'io.testerra:bup:2.0-RC-5'
pom.xml
<dependencies>
    <dependency>
        <groupId>io.testerra</groupId>
        <artifactId>bup</artifactId>
        <version>2.0-RC-5</version>
    </dependency>
</dependencies>

9.1.2. External Proxy Server

Best practice for using a Testerra with an external proxy, is to use a dedicated BrowserUp Instance. To start these instance, please have a further read on the BrowserUp documentation.

import eu.tsystems.mms.tic.testerra.bup.BrowserUpRemoteProxyManager;
import eu.tsystems.mms.tic.testerra.bup.BrowserUpRemoteProxyServer;
import eu.tsystems.mms.tic.testframework.testing.TesterraTest;
import org.openqa.selenium.Proxy;
import org.testng.annotations.AfterSuite;
import org.testng.annotations.BeforeSuite;

import java.net.MalformedURLException;
import java.net.URL;

public class AbstractTest extends TesterraTest {

    private static BrowserUpRemoteProxyServer bupProxy;

    @BeforeSuite
    public void setupProxy() throws MalformedURLException {

        final URL apiUrl = new URL("http://localhost:8080");
        final BrowserUpRemoteProxyManager bupRemoteProxyManager = new BrowserUpRemoteProxyManager(apiUrl);
        bupProxy = bupRemoteProxyManager.startServer();

        /* Additional Proxy setup here */
        final String bmpProxyAddress = String.format("%s:%d", apiUrl.getHost(), bupProxy.getPort());

        // For selenium usage.
        final Proxy proxy = new Proxy();
        proxy.setHttpProxy(bmpProxyAddress)
                .setFtpProxy(bmpProxyAddress)
                .setSslProxy(bmpProxyAddress);

        WebDriverManager.setGlobalExtraCapability(CapabilityType.PROXY, proxy);
    }

    @AfterSuite
    public void tearDownProxy() throws MalformedURLException {

        final URL apiBaseUrl = new URL("http://localhost:8080");
        final BrowserUpRemoteProxyManager browserUpRemoteProxyManager = new BrowserUpRemoteProxyManager(apiBaseUrl);

        for (final Integer proxyPort : browserUpRemoteProxyManager.getProxies()) {
            final BrowserUpRemoteProxyServer bupToStop = new BrowserUpRemoteProxyServer();
            bupToStop.setPort(proxyPort);
            browserUpRemoteProxyManager.stopServer(bupToStop);
        }
    }
}

BrowserUp creates a new proxy server at the next free port beginning with port 8081 (BrowserUp default).

If you need a dedicated port, use `startServer(BrowserUpRemoteProxyServer proxyServer)`method the following way.

BrowserUpRemoteProxyServer browserUpRemoteProxyServer = new BrowserUpRemoteProxyServer();
browserUpRemoteProxyServer.setPort(8088);

browserUpRemoteProxyServer = browserUpRemoteProxyManager.startServer(browserUpRemoteProxyServer);

If the port already used, the BrowserUpRemoteProxyManager will do nothing, and just return the given config-object of type BrowserUpRemoteProxyServer.

Basic Auth

If your SUT is protected by HTTP basic auth, you can set up these credentials as following.

URL baseUrl = WEB_DRIVER_MANAGER.getConfig().getBaseUrl();
final String basicAuthUser;
final String basicAuthPassword;

final URL apiBaseUrl = new URL(LOCAL_PROXY_FOR_TEST);
final BrowserUpRemoteProxyManager browserUpRemoteProxyManager = new BrowserUpRemoteProxyManager(apiBaseUrl);
final BrowserUpRemoteProxyServer bup1 = browserUpRemoteProxyManager.startServer();

browserUpRemoteProxyManager.setBasicAuth(bup1, baseUrl.getHost(), basicAuthUser, basicAuthPassword);
Upstream proxy

If your SUT should use a proxy, you can set up BrowserUp proxy instance to use an upstream proxy like in SUT Browser Proxy

BrowserUpRemoteProxyServer bup1 = new BrowserUpRemoteProxyServer();
bup1.setUpstreamProxy(ProxyUtils.getSystemHttpProxyUrl());

final BrowserUpRemoteProxyManager browserUpRemoteProxyManager = new BrowserUpRemoteProxyManager(apiBaseUrl);
bup1 = browserUpRemoteProxyManager.startServer();
Other features
/*
 Check if proxy alread runs on port...
 */
final BrowserUpRemoteProxyManager browserUpRemoteProxyManager = new BrowserUpRemoteProxyManager(apiBaseUrl);

BrowserUpRemoteProxyServer bup1 = new BrowserUpRemoteProxyServer();
bup1.setPort(8088);

bup1 = browserUpRemoteProxyManager.startServer(bup1);
boolean isRunning = browserUpRemoteProxyManager.isRunning(nup1);

/*
 Maps specific host names to another host names or IP adresses
 */
browserUpRemoteProxyManager.setHostMapping(BrowserUpRemoteProxyServer proxyServer, Map<String, String> hostNameMapping);

/*
 Capture the traffic and return it as a JsonElement
 You can choose, if you want to capture only the headers, the content or both via the boolean flags.
 */
browserUpRemoteProxyManager.startCapture(BrowserUpRemoteProxyServer proxyServer, String initialPageRef, boolean isCaptureHeaders, boolean isCaptureContent);
JsonElement stopCapture(BrowserUpRemoteProxyServer proxyServer);

/*
 Adds additional key-value pairs to the headers.
*/
browserUpRemoteProxyManager.addHeader(final BrowserUpRemoteProxyServer proxyServer, final String key, final String value);

9.1.3. Local browser instances

If you want to quickly spin up a proxy isntance on your local system while testing, you can use the BrowserUpLocalProxyManager.

List<Integer> portPool = new ArrayList<>();
ports.add(8090);
ports.add(8091);
ports.add(8092);
ports.add(8093);
ports.add(8094);
ports.add(8095);

BrowserUpLocalProxyManager bupLocalManager = new BrowserUpLocalProxyManager(ports);

// Start instance
BrowserUpProxyServer browserUpProxyServer = new BrowserUpProxyServer();
browserUpProxyServer = bupLocalManager.startServer(browserUpProxyServer);

// assert that a port of given port pool was used.
Assert.assertTrue(portPool.contains(port), "Port of range was used.");

// assert proxy is started.
Assert.assertTrue(bup1.isStarted(), "Proxy started");

The local proxy manager works with a defined port pool, which has to be declared on instantiation of the manager class. This port pool will be used to spin up multiple proxy servers for a multi threading test execution.

The port pool has to be declared by yourself, respectively your code, because, only you can know which ports are currently free to use on your local test execution machine.

To use upstream proxies, add headers or do other things on the local proxy server, please take a closer look on BrowserUp documentation.

9.2. Browser Mob Proxy (deprecated)

Browser Mob Proxy (BMP) is a utility for manipulating network traffic. You can use it to enable Basic Auth for your SUT and other features.

9.2.1. Project setup

Latest release Maven Central

build.gradle
compile 'io.testerra:bmp:2.0-RC-5'
pom.xml
<dependencies>
    <dependency>
        <groupId>io.testerra</groupId>
        <artifactId>bmp</artifactId>
        <version>2.0-RC-5</version>
    </dependency>
</dependencies>

Best practice for using a Testerra with a proxy, is to use a dedicated BMP instance.

import org.testng.annotations.BeforeSuite;
import org.testng.annotations.AfterSuite;
import eu.tsystems.mms.tic.testframework.bmp.BmpRestClient;
import eu.tsystems.mms.tic.testframework.webdrivermanager.WebDriverManager;
import org.openqa.selenium.Proxy;

public abstract class AbstractTest extends TesterraTest {

    private static BmpRestClient bmpClient;

    @BeforeSuite
    public void proxySetup() {

        final URL apiUrl = new URL("http://localhost:8080");
        bmpClient = new BmpRestClient(apiUrl);

        /* Additional Proxy setup here */
        final int proxyPort = bmpClient.startServer();
        final String bmpProxyAddress = String.format("%s:%d", apiUrl.getHost(), proxyPort);

        // For selenium usage.
        final Proxy proxy = new Proxy();
        proxy.setHttpProxy(bmpProxyAddress)
            .setFtpProxy(bmpProxyAddress)
            .setSslProxy(bmpProxyAddress);

        WEB_DRIVER_MANAGER.setGlobalCapability(CapabilityType.PROXY, proxy);
    }

    @AfterSuite
    public void proxyTeardown() {
        bmpClient.stopServer();
    }
}

BMP creates a new proxy server at the next free port beginning with port 8081 (BMP default).

If you need a dedicated port, use startServer with a port number. If the port already used, BMP client only returns the port number.

...
int customPort = 8085;
final int proxyPort = bmpClient.startServer(customPort);
...

9.2.3. Basic Auth

If your SUT is protected by HTTP basic auth, you can setup these credentials as following.

import java.net.URL;

/* Additional Proxy setup here */
URL baseUrl = WEB_DRIVER_MANAGER.getConfig().getBaseUrl();
final String basicAuthUser;
final String basicAuthPassword;
bmpClient.setBasicAuth(baseUrl.getHost(), basicAuthUser, basicAuthPassword);

9.2.4. Upstream proxy

If your SUT should use proxy, you can setup BMP to use a upstream proxy like in SUT Browser Proxy

import eu.tsystems.mms.tic.testframework.utils.ProxyUtils;

bmpClient.setUpstreamProxy(ProxyUtils.getSystemHttpProxyUrl());

9.2.5. Other features

/*
 Checks if a proxy server is available by a custom port.
 */
int port = 8085;
boolean isUsed = bmpClient.isProxyRunningAtPort(port);

/*
 Maps specifc host names to another host names or IP adresses
 */
bmpClient.setHostMapping(Map<String, String> hostNameMapping);

/*
 Capture the traffic and return it as a JsonElement
 You can choose, if you want to capture only the headers, the content or both via the boolean flags.
 */
bmpClient.startCapture(boolean headers, boolean content);
JsonElement element = client.stopCapture();

/*
 Adds additional key-value pairs to the headers.
*/
bmpClient.setHeader(String key, String value);

9.3. CSV Reader (deprecated)

This class is not supported anymore and therefore marked as @deprecated. If you want to read CSV files into Java beans, please consider the documentation of the OpenCSV library

The CSV reader class provides a basic reader for CSV files. This is useful to handle testdata. It provides two ways to read a csv file.

For all code examples we assume the following CSV files located in your project resource directory, e.g. src/test/resources.

TestCsvReader.csv
id;name;firstName
AH_1;Muster;Max
AH_2;Paula;Paul
TestCsvReaderWithSubBean.csv
id;name;firstName;subModel
AH_1;Muster;Max;SUB_1
AH_2;Paula;Paul;SUB_2
TestCsvReaderSubModel.csv
id;street;city
SUB_1;Street A 12;Dresden
SUB_2;Street B 13;Leipzig

9.3.1. Read file into map

With following code snippet you can read a CSV file into a simple key-value based map.

The values of the header row will be used as key. All other rows are then values of the given key.

final CSVTestDataReader csvTestDataReader = new CSVTestDataReader();

final List<Map<String, String>> testDataMap = csvTestDataReader.readCsvTestDataFromResource("testfiles/TestCsvReader.csv");

Assert.assertEquals(testDataMap.size(), 2);
Assert.assertEquals(testDataMap.get(0).get("id"), "AH_1");
Assert.assertEquals(testDataMap.get(1).get("id"), "AH_2");

9.3.2. Read files into beans

The other way to read a CSV file is to convert it into Java models. Therefore you have to specify the class matches the Java domain model pattern.

final CSVTestDataReader csvTestDataReader = new CSVTestDataReader();

final List<TestCsvReaderBean> testDataList = csvTestDataReader.readCsvIntoBeans("testfiles/TestCsvReader.csv", TestCsvReaderBean.class);

Assert.assertNotNull(testDataList);####
Assert.assertNotEquals(testDataList.size(), 0);

final TestCsvReaderBean testCSVReader = testDataList.get(0);
final String id = testCSVReader.getId();
Assert.assertEquals(id, "AH_1");

Further to this approach it is possible to concat objects like you do in your Java model as well.

Given the following classes and the given CSV, you will notice, that TestCsvReaderWithSubModel has a property of type TestCsvReaderSubModel. In order to solve this, the CSV reader will try to find a CSV file named like your class TestCsvReaderSubModel in your resources. If it exists, the CSV reader will read this "sub-file" as well and will inject the object into the main type.

Just ensure that you provide a unique line identifier. The CSV reader will then take care.

TestCsvReaderWithSubModel.java
public class TestCsvReaderBeanWithSubModel {

    private String id;
    private String name;
    private String firstName;
    private TestCsvReaderSubModel subModel;

    // getter and setter here...
}
TestCsvReaderSubModel.java
public class TestCsvReaderSubModel {

    private String id;
    private String street;
    private String city;

    // getter and setter here...
}

Simple data types must be represented by their object data types.

E.g. * intInteger * booleanBoolean

9.3.3. Customize the CSV reader

The following table shows how you can customize the CSV reader.

Method Default value Description

setHeaderRow(int headerRow)

0

Set the row of the hedaer in CSV file, beginning with 0.

setSeparator(char separator)

;

Set the column separater.

setQuoteChar(char quoteChar)

\"

Set the characters, how strings can be quoted.

9.4. Layout Check

Layout tests always mean checking whether a GUI is designed according to the guidelines.

9.4.1. Introduction

Are the position, size, color and shape of the elements correct? Are distances maintained? Perhaps even certain elements are missing? In test automation, functionality is primarily tested. Here it is actually irrelevant how a button is designed and where it is positioned. The main thing is that the element can be uniquely recognized via XPath or CSS selectors.

However, in some frontends such as content management systems with a high level of relevance to end users (certain portal solutions, shops) the management is also extremely important. However, testing this with Selenium’s previous means is not in any relation between effort and benefit. Manual visual inspection is usually still the fastest way to do this.

Although, manual inspection can never be pixel-accurate. An inspection of perhaps more than 100 elements is too costly. Smaller shifts or colour deviations are easily overlooked.

At this point an automatic comparison of reference screenshots can help. This test is to be seen in addition to the functional tests, but cannot replace them. In a test case, it would also be conceivable to combine the check of function and layout.

9.4.2. Description

A layout test with the Testerra utilities is actually a comparison between a reference and the actual state. This is done via the screenshot functionality of Selenium, in which both screenshots (reference and actual) are compared pixel by pixel from top to bottom. In this comparison, a third image is created in which differences (ReferencePixel != ActualPixel) are marked in red. The LayoutCheck can perform a check in two ways:

  • PIXEL: Pixel-based image comparison of the entire reference image without exception. You get a quantified value for pixel displacement in percent (0-100%)

  • ANNOTATED: The image comparison is based on annotations in the reference image. The annotations are rectangles in a certain color, which include the areas to be checked. You get a quantified value for displaced annotations in percent.

Prerequisites

The following prerequisites must be met

  1. Concrete execution environment: Layout tests should run in a concrete browser environment to ensure the comparability of the screenshots.

    • Size of browser window: Define fixed size to exclude different sizes of the images at different VM resolutions

    • Screen resolution and scaling: Make sure you have the same screen resolution and scaling on each presentation device (ea. Testerra uses a resolution of 1920x1200 (16:10) with a scaling of 1 per default in headless environments)

  2. Build Server: The library underlying ANNOTATED mode supports the operating systems

    • Windows 32 - and 64 - Bit

    • Linux Debian 32 - and 64 - Bit (glibc >= 2.15; Jenkins)

    • MacOSX (untested)

9.4.3. Configuration

In order to get the layout check to work, you need at least a reference image and a place where it’s located.

test.properties
tt.layoutcheck.reference.path=src/test/resources/layout-references/{tt.browser}

# Highly recommended to disable full screen for browser
tt.browser.maximize=false

# Highly recommended to switch of the demo mode for layout tests
tt.demomode=false

The directory for reference image may result in src/test/resources/layout-references/chrome/WelcomePage.png for example.

9.4.4. PIXEL Mode

The comparison is generally carried out over the entire reference image. In this case, it is a prerequisite that the reference screenshot and the screenshot created during the test runtime have the same resolution (height and width are identical).

Mostly the website consists of many more elements than should be checked. Ingredients such as the header, menus or footer may falsify the test result if there are deviations from the reference, but these are not currently the subject of the test. For this reason, the tt.layoutcheck.use.ignore.color property can be used to determine that a particular color in the image can be excluded from comparison.

To validate the layout in Pixel Mode, you can check the whole page or a single UiElement.

Check the whole page
page.expect().screenshot().pixelDistance("WelcomePage").isLowerThan(1);
Check a single UiElement

To check the layout of a single UiElement only, you can use the standard asserts implementation.

uiElement.expect().screenshot().pixelDistance("HeaderComponent").isLowerThan(10);
Take reference screenshots on first run

When you have configured the reference screenshots location and implemented the tests, you can now set the option

tt.layoutcheck.takereference=true

to enable taking automatically screenshots based on the current browser and size configuration and storing them to the reference image’s location.

All concrete distance values in this tt.layoutcheck.takereference-mode will return 0 (zero) and always pass the tests.

9.4.5. ANNOTATED Mode

For this mode, an arbitrary number of rectangles with a line width of one pixel are defined in the reference images. The color of the rectangles is to be communicated to Testerra via the upper left pixel (x=1, y=1). In the current screenshot, Testerra searches for the area within the annotated selection. The resolution of the current screenshot is irrelevant.

9.5. Localization

Websites come in many languages, where the functionality may not change, but labels of buttons, input or other interactive elements. Testerra provides an easy and simple way to support the localization of UiElements based on Locale.

9.5.1. Add localization resource bundle

The localization is based on Unicode .properties files loaded during runtime. To add such files, create a new resource bundle lang in src/main/resources and add all required locales.

lang_en.properties
BTN_LOGIN=Login
lang_de.properties
BTN_LOGIN=Anmelden
You can change the default encoding for .properties files in IntellJ at File → Settings → File Encodings
intellij properties encoding

9.5.2. Access localization text

Now you can instance UiElements by localized strings.

import eu.tsystems.mms.tic.testframework.l10n.SimpleLocalization;

UiElement loginBtn = find(By.linkText(SimpleLocalization.getText("BTN_LOGIN")));

But you can use your own localized bundles.

import eu.tsystems.mms.tic.testframework.l10n.LocalizedBundle;

LocalizedBundle bundle = new LocalizedBundle("testdata");
bundle.getString("TEST_KEY");

The best way to change the locale for your tests is, to pass the language property as command line argument.

gradle test -Duser.language=de

For Maven, you need some extra configuration

pom.xml
<project>
    <properties>
        <user.language>de</user.language>
        <user.country>DE</user.country>
        <argLine>-Duser.language=${user.language} -Duser.country=${user.country}</argLine>
    </properties>
</project>

before running the command

mvn test -Duser.language=de -Duser.country=DE

9.5.4. Change locale from property

When you want to change the locale from a property. Do the following

String testLanguage = PROPERTY_MANAGER.getProperty("test.language", "de");
Locale.setDefault(Locale.forLanguageTag(testLanguage));

9.5.5. Change locale for the user agent

The WebDriver API official doesn’t support changing the language of a browser session. But there exists non-standard or experimental ways on Stackoverflow to change your browser locale.

Anyways, it’s currently the better way to visit your SUT with a predefined language and change it there (with a language switcher).

9.6. Mail connector

The module mail-connector allows you to send and receive/read emails as well as solve mail surrounding tasks like encoding or encrypting.

9.6.1. Project setup

Latest release Maven Central

Gradle
// build.gradle
compile 'io.testerra:mail-connector:2.0-RC-5'
Maven
<!-- pom.xml -->
<dependencies>
    <dependency>
        <groupId>io.testerra</groupId>
        <artifactId>mail-connector</artifactId>
        <version>2.0-RC-5</version>
    </dependency>
</dependencies>
Configuration Parameters

All MailConnector classes need parameters to connect to the corresponding server. These are set within the mailconnection.properties file or by system properties. The following parameters must be set.

mailconnection.properties
#SMTP
SMTP_SERVER=smtp.mailserver.com
SMTP_SERVER_PORT=25
SMTP_USERNAME=user
SMTP_PASSWORD=password

#POP3
POP3_SERVER=pop.mailserver.com
POP3_SERVER_PORT=110
POP3_FOLDER_INBOX=inbox
POP3_USERNAME=user
POP3_PASSWORD=password

# IMAP
IMAP_SERVER=imap.mailserver.com
IMAP_SERVER_PORT=143
IMAP_FOLDER_INBOX=INBOX
IMAP_USERNAME=user
IMAP_PASSWORD=password

# TIMING for POP3 and IMAP
# sets the timeout between polls, default = 50s
POLLING_TIMER_SECONDS=10
# sets the maximum number of polls, default = 20
MAX_READ_TRIES=20

If you want to use an SSL-encrypted connection, you need to set SMTP_SSL_ENABLED / POP3_SSL_ENABLED to true. The ports must then be adjusted according to the server. The actual connection to the mail server is implicitly opened within each MailConnector class.

9.6.2. POP3MailConnector

The POP3MailConnector provides access to a POP3 server. Emails are read and processed by using methods of the superclass AbstractInboxConnector. Specific mails can be extracted with serverside filtering by matching given criteria expressed with SearchTerm (see JavaMail API)

Reading and Deleting Mails
POP3MailConnector pop3MailConnector = new POP3MailConnector();

// wait until the email with subject 'test' arrived in the InboxFolder
EmailQuery query = new EmailQuery().setSearchTerm(new SubjectTerm(subject));
Email email = pop3MailConnector.query(query).findFirst().get();

// delete all emails with this subject from the server while setting timeout and max number of polls explicitly
query.setRetryCount(5);
query.setPauseMs(2000);

Email email = pop3MailConnector.query(query).findFirst().get();

// delete mails matching the given criteria
String recipient = email.getRecipients().get(0));
String subject = email.getSubject();
String messageId = null;

pop3MailConnector.deleteMessage(recipient, RecipientType.TO, subject, messageId);
Working with attachments
// wait until the email with subject 'test' arrived in the InboxFolder
EmailQuery query = new EmailQuery().setSearchTerm(new SubjectTerm(subject));
Email email = pop3MailConnector.query(query).findFirst().get();

try {
    Multipart content = (Multipart) email.getMessage().getContent();
    int contentCnt = content.getCount();
    String attachmentFileName = null;

    for (int i = 0; i < contentCnt; i++) {
        Part part = content.getBodyPart(i);

        // Retrieve attachment
        if (part.getDisposition().equals(Part.ATTACHMENT)) {
            attachmentFileName = part.getFileName();
        }
    }
} catch (IOException e) {
    e.printStackTrace();
} catch (MessagingException e) {
    e.printStackTrace();
}

9.6.3. SMTPMailConnector

This entity allows sending emails via the SMTP protocol.

Sending Mails
SMTPMailConnector smtpMailConnector = new SMTPMailConnector();

// send a created message
MimeMessage createdMessage = new MimeMessage(session);
try {
    msg.addRecipients(RecipientType.TO, RECIPIENT);
    msg.addFrom(new Address[]{new InternetAddress(SENDER)});
    msg.setSubject("testerra");
    msg.setText("mail text");
} catch (MessagingException e) {
    LOGGER.error(e.toString());
}
smtpMailConnector.sendMessage(createdMessage);

// send an existing message
MimeMessage existingMessage = MailUtils.loadEmailFile("test-mail.eml");
smtpMailConnector.sendMessage(existingMessage);

9.6.4. ImapMailConnector

The ImapMailConnector operates like the POP3MailConnector with an additional method to mark all mails as seen.

Working with Mails using ImapMailConnector
ImapMailConnector imapMailConnector = new ImapMailConnector();

EmailQuery query = new EmailQuery().setSearchTerm(new SubjectTerm(subject));
imapMailConnector.query(query).findFirst().ifPresent(email -> {
    // EMail found
});

// mark all mails in inbox as seen
imapMailConnector.markAllMailsAsSeen();

// delete all mails in inbox
imapMailConnector.deleteAllMessages();

9.6.5. Get simply the message count

You can get the message count for the inbox, of a specified folder name.

connector.getMessageCount();
connector.getMessageCount("FolderName");

9.6.6. SSL settings and trusting hosts for self-signed certificates

SSL is enabled per default for POP3 and IMAP and can be configured via. properties.

IMAP_SSL_ENABLED=false
POP3_SSL_ENABLED=false
SMTP_SSL_ENABLED=true

The MailConnector uses Certificate Utilities for trusting hosts.

9.6.7. Custom configuration

You can set properties to the JavaMail framework like:

connector.configureSessionProperties(properties -> {
    properties.put("mail.imaps.auth.ntlm.disable", true);
});

9.6.8. Debugging the MailConnector

Enable the debug mode programatically

connector.getSession().setDebug(true);

or via Properties

DEBUG_SETTING=true

9.6.9. Best Practices

Combine search terms

You can combine search terms the following way

EmailQuery query = new EmailQuery();

query.withAllOfSearchTerms(
    new SubjectTerm("My Subject"),
    new ReceivedDateTerm(DateTerm.EQ, new Date())
);

// or
SearchTerm oneOf = new OrTerm(
    new SubjectTerm("My Subject"),
    new SubjectTerm("PetsOverNight.com"),
);
query.setSearchTerm(oneOf);

// or
List<SearchTerm> searchTerms = new ArrayList<>();
searchTerms.add(oneOf);
searchTerms.add(new ReceivedDateTerm(DateTerm.EQ, new Date()));
query.withAllOfSearchTerms(searchTerms);
Find emails by specified date

To find emails for a specified date, you should combine the SentDateTerm and an explicit filter, because the internal library is not able to filter by exact date with the IMAP protocol.

EmailQuery query = new EmailQuery();
Date now = new Date();

// Query emails that arrived today
query.setSearchTerm(new SentDateTerm(ComparisonTerm.GE, now));

connector.query(query)
    .filter(email -> email.getSentDate().after(now))
    .forEach(email -> {
        // EMail found
    });

9.6.10. MailUtils

This helper class contains methods which facilitate reoccurring tasks when working with mails, e.g. encrypting, decrypting, and comparing mails.

Encryption, Decryption and Comparison
String pahtKeyStore = "your/path/to/cacert.p12";
String password = "123456";
String subject = "test";
String sentContent = "Testerra Testmail"

SMTPMailConnector smtpMailConnector = new SMTPMailConnector();
Session session = smtpMailConnector.getSession();

MimeMessage sentMessage = new MimeMessage(session);
sentMessage.setText(sentContent);
sentMessage.setSubject(subject);

// encrypt message
MimeMessage encryptedMsg = MailUtils.encryptMessageWithKeystore(sentMessage, session, pahtKeyStore, password);

smtpMailConnector.sendMessage(encryptedMsg);
Email receivedMsg = waitForMessage(subject);

// compare Mails and verify difference due to encryption
boolean areContentsEqual = MailUtils.compareSentAndReceivedEmailContents(sentMessage, receivedMsg);
Assert.assertFalse(areContentsEqual);

// decrypt message
MimeMessage decryptedMsg = MailUtils.decryptMessageWithKeystore(encryptedMsg, session, pahtKeyStore, password);
// verify receivedContent is equal to sentContent
String receivedContent = ((Multipart) decryptedMsg.getContent()).getBodyPart(0).getContent().toString();
Assert.assertEquals(receivedContent, sentContent);

9.7. PropertyManager

The PropertyManagerProvider interface provides a PROPERTY_MANAGER instance of IPropertyManager

String property         = PROPERTY_MANAGER.getProperty("my.property", "default");
Long longProperty       = PROPERTY_MANAGER.getLongProperty("my.long", 200L);
Double doubleProperty   = PROPERTY_MANAGER.getDoubleProperty("my.double", 200.0);
Boolean booleanProperty = PROPERTY_MANAGER.getBooleanProperty("my.boolean", false);

It will look for the property definition appearance in the following order:

When it’s still not defined, in will fall back to the given default value.

9.7.1. Property files

Testerra supports and loads automatically .properties files located under test/resources.

The test.properties is called the Test Configuration and contains everything required by the test, like Browser setup, SUT credentials or Layout test thresholds.

You can load additional properties files at any time.

PROPERTY_MANAGER.loadProperties("my.property.file");
This will override already defined properties.

9.7.2. System properties

When a system.properties exists, Testerra loads and sets the given properties via System.setProperty() if they are not present already.

This will not override already defined system properties given by the command line.

The path of this file can be changed by tt.system.settings.file and will be automatically loaded with the following message

common.PropertyManager - Load system properties: /path/to/your/system.properties

9.7.3. Test local properties

If you want to set properties for a test method only, you can use

PROPERTY_MANAGER.setTestLocalProperty("myproperty", "myvalue");

This property will be removed after every test method.

9.8. Connectors

While using the framework some external connectors could be useful. The maintainers provide some of them in separate repositories. Please take a look at the following list if there is a connector mapping your need.

Name Description

Appium Connector

Uses the open source standard Appium to run web tests based on Testerra on mobile devices.
Maven Central

Azure DevOps Connector

Automatic test result synchronization for Microsoft AzureDevOps platform.
Maven Central

Cucumber Connector

Provides the opportunity to use Cucumber and Gherkin to specify .feature files and combine it with the advantages of Testerra.
Maven Central

HPQC Connector

Automatic test result synchronization to HP Application Lifecycle Management, former called HP QualityCenter.
Maven Central

Selenoid Connector

Using a Selenium Grid based on Selenoid this module provides access to videos and VNC streams.
Maven Central

TeamCity Connector

A simple notification service for Jetbrains TeamCity.
Maven Central

Xray Connector

Automatic test result synchronization Jira XRay.
Maven Central

10. Utilities

10.1. Assert Utilities (deprecated)

This class has been replaced by the Assertion interface, therefore marked as @deprecated and should not be used anymore.

This class provides some extra assertion methods for TestNG:

AssertUtils.assertContains("Hello World", "Martin", "Greeting");
// Greeting [Hello World] contains [Martin] expected [true] but found [false]

AssertUtils.assertContainsNot("Hello World", "World", "Greeting");
// Greeting [Hello World] contains [World] expected [false] but found [true]

AssertUtils.assertGreaterEqualThan(new BigDecimal(2), new BigDecimal(4), "High number");
// High number [2] is greater or equal than [4] expected [true] but found [false]

AssertUtils.assertLowerThan(new BigDecimal(2), new BigDecimal(-1), "Low number");
// Low number [2] is lower than [-1] expected [true] but found [false]

10.2. Certificate Utilities

This is an utility class that offers the possibility to trust all SSL certificates.

Accepting all SSL certs is a risk and should only be used in trusted environments.
// Trust all certificates in the current Java VM instance.
CertUtils.trustAllCerts();
// Trust only certificates for a special connection and a SSL socket factory.
HttpsURLConnection CertUtils.trustAllCerts(
    HttpsURLConnection connection,
    SSLSocketFactory sslSocketFactory
);

10.2.1. Trusting hosts

You can trust specified hosts in a whitespace separated list like

tt.cert.trusted.hosts=example.com google.com

Or just trust any (not recommended)

tt.cert.trusted.hosts=*

10.3. Desktop WebDriver utilities

This utility class provides some additional methods to interact with web elements.

All methods using JavaScript snippets to execute an action instead the Selenium way.

Please consider this utility class as a fallback solution.

It could be useful if elements are hidden or not reachable by Selenium.

10.3.1. Supported actions

A short clickJS example
UiElement element = find(By.id("label"));
DesktopWebDriverUtils utils = new DesktopWebDriverUtils();

utils.clickJS(element);

The following methods are supported:

  • clickJS()

  • rightClickJS()

  • doubleClickJS()

  • mouseOverJS()

  • clickAbsolute()

  • mouseOverAbsolute2Axis()

See Mouse over for more details about the mouseOverAbsolute2Axis method.

10.3.2. mouseOver vs. mouseOverAbsolute2Axis

The mouseOverAbsolute2Axis method does not move the mouse pointer relativly from the last position.

The following graphic shows 2 different mouse pointer paths beginning at the upper right image to the button 1.

absolute2Axis
Figure 5. Two possible mouse paths

The standard path (green) goes over a menu with hover effects. This could hide your target element. The blue path variant always goes first to the point (0,0) of the viewport, then in x and y direction the the target element.

10.4. JavaScript Utilities

JSUtils provide some helper methods to inject and execute JavaScript code via WebDriver.

10.4.1. Execute JavaScript

Sometimes in automated testing for web applications you want to access your system under test by JavaScript or you just want to implement a code snippet to run custom validations. For example, Testerras Demo mode will use this behaviour to highlight elements while asserting or typing to visualize current actions.

Executing JavaScript
UiElement hiddenUploadField = findById("hidden-upload-field");
hiddenUploadField.expect().present(true);

hiddenUploadField.findWebElement(webElement -> {
    // will change style to display a hidden element
    JSUtils.executeScript(hiddenUploadField.getWebDriver(), "arguments[0].setAttribute('style', 'display:block; opacity: 1')", webElement);
});

10.4.2. Inject JavaScript (deprecated)

Content Security Policies disallow injection JavaScript into the DOM. Therefore, the following feature is @deprecated.

For executing more than a single line of JavaScript code it is recommended to write a JavaScript file and store it in src/main/resources or src/test/resources directory. Then you can inject the full JavaScript file with following method.

Implementing own JavaScript code
// WebDriver, Path to resource file, id of the script-tag
JSUtils.implementJavascriptOnPage(driver, "js/inject/custom.js", "customJs");

Testerra will then inject your resource file into the current DOM of your WebDriver instance according to the template.

<script id="customJs" type="text/javascript">
    // your javascript code here.
</script>

10.5. Download Utilities

10.5.1. FileDownloader

The FileDownloader utility provides methods for downloading resources from web sites. It uses the default proxy configuration.

Basic example how to use the FileDownloader
// define the url where to download the resource from
String downloadUrl = "https://upload.wikimedia.org/wikipedia/commons/thumb/0/0a/"+
	"S%C3%A5g_med_arm_av_valn%C3%B6t_-_Skoklosters_slott_-_92588.tif/"+
	"lossy-page1-1024px-S%C3%A5g_med_arm_av_valn%C3%B6t_-_Skoklosters_slott_-_92588.tif.jpg";

// request access to the current web driver instance
WebDriver driver = WebDriverManager.getWebDriver();

// construct the downloader
FileDownloader downloader = new FileDownloader();

// perform the download
File downloadFile = downloader.download(driver, downloadUrl);

System.out.println("downloaded file exists:" + downloadFile.exists());
File downloading settings.
FileDownloader downloader = new FileDownloader();
downloader.setDownloadLocation("/some/directory");
downloader.setImitateCookies(true);
downloader.setTrustAllCertificates(true);
downloader.setProxy(new Proxy(Proxy.Type.HTTP, new InetSocketAddress("123.0.0.1", 8080)));
Delete all downloaded files.
downloader.cleanup();

10.6. PDF Utilities

This is an utility class for extracting text content of PDF documents for verifications.

// reads text from a file given by a filename (absolute path of file).
String textFromPdf = PdfUtils.getStringFromPdf(String pdfFileLocation);
//reads text from a pdf given as input steam.
String textFromPdf = PdfUtils.getStringFromPdf(InputStream stream);

10.7. Proxy Utilities

This is a static helper class based for reading the proxy configuration from system properties.

import java.net.URL;
import eu.tsystems.mms.tic.testframework.utils.ProxyUtils;

// Format e.g.: http://{http.proxyHost}:{http.proxyPort}
URL httpProxyUrl = ProxyUtils.getSystemHttpProxyUrl();
URL httpsProxyUrl = ProxyUtils.getSystemHttpsProxyUrl();

10.8. UITest Utilities (deprecated)

This class is marked as @deprecated and should not be used anymore.

The UITestUtils supports you to generate additional screenshots.

You can add the screenshots into the report to the method steps.

Use the WebDriverManager within a test method
@Test
public void testDemo() {
    UITestUtils.takeScreenshot(WebDriverManager.getWebDriver(), true);
}
Within a page you can use the driver object.
class ExamplePage extends Page {
    public void doAnything() {
        UITestUtils.takeScreenshot(this.getWebDriver(), true);
    }
}

You can also store a simple screenshot to your project directory.

Save a screenshot as a simple file.
@Test
public void testDemo() {
    ...
    // FileSystems.getDefault() returns the current working directory
    File path = FileSystems.getDefault().getPath("screen.png").toFile();
    UITestUtils.takeWebDriverScreenshotToFile(WebDriverManager.getWebDriver(), path);
    ...
}
Screenshots are always saved in the PNG image format.

10.9. Timer Utilities

The timer utilities provide some useful time related classes.

10.9.1. Sleepy interface

The Sleepy interface provides for proper sleep logging.

import eu.tsystems.mms.tic.testframework.utils.Sleepy;

class MyWorkflow implements Sleepy {
    public void doSomething() {
        sleep();        // Sleeps for an internal default timeout
        sleep(long);    // Sleeps for milliseconds
    }
}

This will log something like

MyWorkflow - sleep(200ms) on MyWorkflow@62b635fe

10.9.2. TimerUtils

If you want to pause your current test execution, because you may have to wait for something or need a hard timeout you can use the TimerUtils.

// Will pause current thread for 1 second.
TimerUtils.sleep(1000);

// You can pass a comment as well
TimerUtils.sleep(5000, "Wait for something to happen.");

Both of these methods calls of sleep() will produce a log message. If you want to sleep without a message, TimerUtils of Testerra provides a method sleepSilent().

10.9.3. Timer (deprecated)

Timings can be controlled using TestController, therefore this class is marked as @deprecated and should not be used anymore.

The Timer provides a basic timer feature, if you have to execute the same snippet of code in a defined interval. It stops after timeout or your sequence code was executed without any exceptions. If your sequence code was not successful the Timer will occur a TimeoutException.

Simple timer sequence
final Timer timer = new Timer(500, 15_000);
timer.executeSequence(new Timer.Sequence<Boolean>() {
    @Override
    public void run() throws Throwable {
        // sequence code here
    }
});

With this approach you will block your current thread, mostly your main thread.

If you want to execute your Sequence in another thread - we got you. Just use the executeSequenceThread method.

You can also return an object. In that case no TimeoutException will occur. Therefor you have to verify your returning object.

public MyObject runTimer() {
    final Timer timer = new Timer(500, 15_000);
    ThrowablePackedResponse<MyObject> myObjectResponse
        = timer.executeSequenceThread(new Timer.Sequence<MyObject>() {
        @Override
        public void run() throws Throwable {
            // sequence code here
            setPassState(boolean);  // exit the sequence if your condition is true before timeout
            setReturningObject(new MyObject());

        }
    });
    return myObjectResponse.getResponse();
}

10.10. WebDriver Utilities

10.10.1. Keep a session alive

Sometimes when interacting with a remote selenium grid provider you will get in touch with the given session timeout of the provider. If your session is idle, the grid provider will close your session due to resource reasons after a timeout set by the provider itself. This is a helpful feature for selenium grid providers, but maybe you just want to set your WebDriver session on hold, because you are interacting with some other WebDriver session in the same thread.

To keep a session alive while processing some other tasks in the main thread you have to send some interactions. For this you can use the managed methods in Testerra framework. This will help you to get your things done and will ensure that you can’t keep sessions alive forever to avoid grid abuse.

Keep a driver alive while interacting with second session
WebDriver driver = WEB_DRIVER_MANAGER.getWebDriver();
// Do some test stuff with session your session

// Starting a second session for example to test concurrent interactions.
WebDriver driverWithOtherUser = WEB_DRIVER_MANAGER.getWebDriver("Session2");

// Keep alive driver while doing actions on driverWithOtherUser for 90 seconds, while refreshing all 10 seconds
WEB_DRIVER_MANAGER.keepAlive(driver, 10, 90);

// Do your things with your second driver

// NOTE: Please release your WebDriverKeepAliveSequence as you dont need the lock
WEB_DRIVER_MANAGER.stopKeepingAlive(driver);

10.11. JVM Utilities

This is an utility class that gives you access to the jvm system performance indicators.

Example on how to use the JVM utility.
// the jvm's performance indicators
int cpuPercent = JVMUtils.getCPUUsagePercent();
int memoryPercent = JVMUtils.getMemoryUsagePercent();
long usedMemory = JVMUtils.getUsedMemory();
long maximumMemory = JVMUtils.getUsedMemory();

System.out.println("cpu usage: " + cpuPercent + " %");
System.out.println("memory usage: " + memoryPercent + " %");
System.out.println("used memory: " + usedMemory);
System.out.println("maximum memory: " + maximumMemory);

// a typical output of these utility methods would be:
//
// cpu usage: 33 %
// memory usage: 20 %
// used memory: 370
// maximum memory: 370

Extending Testerra

11. Extending Testerra

Testerra provides several ways for extensions.

11.1. Modules

To register your module, you need to create a module injection configuration based on the Google Guice framework.

package eu.tsystems.mms.tic.mymodule;

import com.google.inject.AbstractModule;

public class ConfigureMyModule extends AbstractModule {
    @Override
    protected void configure() {
        // inject dependencies here
    }
}
Please be aware, that the package namespace prefix eu.tsystems.mms.tic is required in order to find your module configuration.
All module configuration instances are loaded in alphabetical order.

11.2. Hooks

When you need more module features, like registering to Events or perform setup and teardown functionality, you can implement the ModuleHook interface.

package eu.tsystems.mms.tic.mymodule;

import eu.tsystems.mms.tic.testframework.hooks.ModuleHook;

public class ConfigureMyModule extends AbstractModule implements ModuleHook {
    @Override
    public void init() {
        //
    }

    @Override
    public void terminate() {
        //
    }
}

While the init() method is called on startup of Testerra as one of the earliest steps, you are able to make your customizations as soon as possible.

The terminate() method is called at the most latest point for Testerra right before terminating the execution. You should use this method to cleanup your module, if necessary, for example closing database connections in a database module.

11.3. Events and Listeners

Testerra provides a Google Guava event bus with custom events for test execution. The following events are currently implemented:

Event Description

MethodStartEvent

Called on start of every test method annotated by TestNG @Test annotation.

MethodEndEvent

Called at the end of every test method annotated by TestNG @Test annotation. This can be used to send test results to a test management system or issue tracker.

ExecutionFinishEvent

Called at the end of test run to trigger report generation and other output worker.

ExecutionAbortEvent

Called on test run abortion due to unclear circumstances like hanging sessions, JVM exit or other.

InterceptMethodsEvent

Called before suite execution. The events methods list provides a list of tests to execute. Read more about this in Intercept test method execution

ContextUpdateEvent

Called every time the internal context data has been changed significantly. This can be used to synchronize the internal test context model.

FinalizeExecutionEvent

Called on the very end of the test execution when the execution model has been finalized. Use this event to generate a report.

11.3.1. Create custom event listeners

The simplest way to get in touch with the event bus is to write and register your own implementation of the event’s Listener interface and add the @Subscribe annotation.

Simple LogEventListener
import com.google.common.eventbus.Subscribe;
import eu.tsystems.mms.tic.testframework.events.MethodStartEvent;
import eu.tsystems.mms.tic.testframework.logging.Loggable;

public class LogEventListener implements MethodStartEvent.Listener, Loggable {

    @Override
    @Subscribe
    public void onMethodStart(MethodStartEvent event) {
        log().info("Event logged: " + event.getMethod());
    }
}

If you want to react to some more events, you can just implement multiple interfaces.

11.3.2. Register custom event listener

After you defined your first custom listener you now have to register it to the TesterraListener.

Registering your listener
Testerra.getEventBus().register(new LogEventListener());

11.3.3. Fire events by yourself

While Implementing your own module you may reach a point, where you want to inform other components or modules about an important event. You can achieve this by just posting this event to the bus.

For example, if your module changes some data in the underlying data model, you have to inform all other "participants" about your change by firing an ContextUpdateEvent event.

// Update some data in data model...
methodContext.name = "new_Test_Method_Name";

Testerra.getEventBus().post(new ContextUpdateEvent().setContext(methodContext));

11.3.4. Create custom event types

If you want to provide some custom events to other modules. You can implement these by implementing any kind of class for the event bus.

Creating custom event types
public class CustomEvent {
    public interface Listener {
        void onCustomEvent(CustomEvent event);
    }
}

With your CustomEvent created, you now can fire these events or react to them in the way described in the sections Fire events by yourself and Create custom event listeners.

CustomEvent Listener Example
@Override
@Subscribe
public void onCustomEvent(CustomEvent event) {
   log().info("Custom Event started!");
}

11.3.5. Intercept test method execution

With the test InterceptMethodsEvent, you are able to modify the list of tests being executed before execution.

import eu.tsystems.mms.tic.testframework.events.InterceptMethodsEvent;

public class MyTest extends TesterraTest {

    public class MyListener implements InterceptMethodsEvent.Listener {

        @Override
        @Subscribe
        public void onInterceptMethods(InterceptMethodsEvent event) {
            event.getMethodInstances().removeIf(iMethodInstance -> true);
        }
    }

    @BeforeTest
    public void setupListener() {
        Testerra.getEventBus().register(new MyListener());
    }
}

11.3.6. Listen to TestNG events

Since the TesterraListener listens to TestNG events, it also forwards some of these events the same way like any other events.

import eu.tsystems.mms.tic.testframework.logging.Loggable;
import com.google.common.eventbus.Subscribe;
import org.testng.ISuite;
import org.testng.ISuiteListener;

class MySuiteListener implements ISuiteListener, Loggable {

    @Subscribe
    @Override
    public void onStart(ISuite suite) {
        log().info("Suite started");
    }
}

11.4. Provide Properties

When you want to provide some properties, you can use the IProperties interface within your module.

package eu.tsystems.mms.tic.mymodule;

import eu.tsystems.mms.tic.testframework.common.IProperties;

public class MyModule {

    public enum Properties implements IProperties {
        GREETING("greeting", "hello world"),
        ENABLED("enabled", false),
        ANSWER("answer", 42),
        ;
        private final String property;
        private final Object defaultValue;

        Properties(String property, Object defaultValue) {
            this.property = property;
            this.defaultValue = defaultValue;
        }

        @Override
        public String toString() {
            return String.format("tt.mymodule.%s",property);
        }

        @Override
        public Object getDefault() {
            return defaultValue;
        }
    }
}

Override the default values in a .properties file.

tt.mymodule.greeting=hello planet
tt.mymodule.enabled=true

And access them in your code like

MyModule.Properties.GREETING.toString();    // tt.mymodule.greeting
MyModule.Properties.GREETING.asString();    // hello planet
MyModule.Properties.ENABLED.asBool();       // true
MyModule.Properties.ANSWER.asLong();        // 42

11.5. Create a report

When you want to create a custom report, you have to add the report-model module as a dependency to your module and listen to the FinalizeExecutionEvent.

import com.google.common.eventbus.Subscribe;
import eu.tsystems.mms.tic.testframework.events.FinalizeExecutionEvent;
import eu.tsystems.mms.tic.testframework.logging.Loggable;

public class GenerateReportListener implements FinalizeExecutionEvent.Listener, Loggable {

    @Override
    @Subscribe
    public void onFinalizeExecution(FinalizeExecutionEvent event) {
        log().info("Generate report");
    }
}

11.5.1. Generate the protobuf report model

Testerra ships Google Protobuf model adapters for the internal context model. You can automatically generate all the models during the execution, when you register the AbstractReportModelListener in your module hook.

import com.google.common.eventbus.EventBus;
import eu.tsystems.mms.tic.testframework.listeners.AbstractReportModelListener;
import eu.tsystems.mms.tic.testframework.hooks.ModuleHook;
import eu.tsystems.mms.tic.testframework.report.TesterraListener;

public class CustomReportModuleHook implements ModuleHook {

    @Override
    public void init() {
        Report report = Testerra.getInjector().getInstance(Report.class);
        EventBus eventBus = Testerra.getEventBus();
        eventBus.register(new GenerateReportModelListener(report.getReportDirectory()));
    }
}

This will generate Protobuf models in test-report/models.


Appendix

12. Best Practices

This section contains several articles for best practices for the usage and implementation of tests with Testerra.

12.1. Browser specific knowledge

12.1.1. Firefox

Prevent Firefox download confirmation dialog
WEB_DRIVER_MANAGER.setUserAgentConfig(Browsers.firefox, (FirefoxConfig) options -> {
    // You have to add every mimetype you want no confirmation for
    options.addPreference("browser.helperApps.neverAsk.saveToDisk", "application/zip");
    options.addPreference("browser.download.manager.showAlertOnComplete", false);
    options.addPreference("browser.download.manager.showWhenStarting", false);
});

12.1.2. Chrome

Chrome in a container

If using Selenium with Chrome in a Docker container it may comes to some random WebDriverException, because of some internal container limits.

If you are getting random selenium.common.exceptions.WebDriverException: Message: unknown error: session deleted because of page crash, may this code snippet will solve your problem, by disabling the usage of dev/shm memory and enabling the usage of /tmp instead. This will may slow down your execution time, because you are using disk instead of memory. The reason is, that chrome / chrome driver leads to errors when /dev/shm is too small.

Java snippet for test classes
WEB_DRIVER_MANAGER.setUserAgentConfig(Browsers.chromeHeadless, (ChromeConfig) options -> {
    options.addArguments("--disable-dev-shm-usage");
});

12.1.3. Internet Explorer

Skip certificate warning page

When testing websites with own certificates you may encounter issues and warning pages in each browser you use. For Chrome or Firefox these warnings can be skipped by setting properties, but for the Internet Explorer you have to define a small helper method, that you can call right after opening the base url.

public void skipInternetExplorerSecurityWarning(WebDriver driver, boolean handleAlert) {
    driver.navigate().to("javascript:document.getElementById('overridelink').click()");
    if (handleAlert) {
        driver.switchTo().alert().accept();
    }
}

12.2. Working with HTML elements

12.2.1. Radio buttons

Since radio buttons share the same name, as the following example shows

<input type="radio" name="beverage" value="tee">
<input type="radio" name="beverage" value="coffee">

It’s not a good practice to select it By.name. Its better to select both options separately.

// Good practice
PreparedLocator locator = LOCATE.prepare("//input[@name='%s' and @value='%s']").unique();
UiElement teeOption = find(locator.with("beverage", "tee"));
UiElement coffeeOption = find(locator.with("beverage", "coffee"));

// Bad practice
UiElement options = find(By.name("beverage"));

12.2.2. Shadow Roots

Working with Shadow Roots and Shadow DOM elements is not supported by Selenium. It’s a highly-experimental feature and not all browsers can work well with these elements in browser automation. The best browser by our experience is a chromium-based browser.

Modern web applications are allowed to use some third-party components, which can be integrated with Shadow DOM. This is the modern art of an iframe, because the components will be loaded via asynchronous JavaScript.

Each embedded Shadow DOM component will have its own shadow root. To work with shadow root elements Testerra provide the method shadowRoot() on the UiElement class.

Given the following HTML code snippet it will be easier how to get the corresponding UiElement of the Shadow DOM component.

HTML Code
<body>
    <div id="wrapper">
    <!-- HTML code-->
    <my-custom-shadow-root-element>
    <!-- #shadowRoot -->
        <div class="custom-component">
            <input id="custom-component-login-name" name="name">
        </div>
    </my-custom-shadow-root-element>
    </div>
    <!-- HTML code-->
</body>
Java Code
UiElement shadowRootElement = find(By.cssSelector("my-custom-shadow-root-element")).shadowRoot();
UiElement inputName = shadowRootElement.find(By.xpath("./custom-component-login-name"));
Calling displayed(boolean) on shadowRoot()-notated UiElement will always return false, but present(boolean) will work as designed.
Because of technical limitations and internal handling of browser-different access to Shadow DOM elements, it is not possible to use any other By Selector-type than By.xpath() working with find() on a shadow root.

12.3. Support multiple profiles

Supporting multiple profiles is useful, for different environments or test suites.

build.gradle
test {
    def profiles = [
        "mySuite": "suite.xml"
    ]

    def suiteFiles = []
    profiles.each { k, v ->
        if (project.hasProperty("" + k)) {
            def f = 'src/test/resources/' + v
            suiteFiles << f
        }
    }

    useTestNG() {
        suites(suiteFiles as String[])
    }
}
pom.xml
<project>
   <profiles>
        <profile>
            <id>mySuite</id>
            <build>
                <plugins>
                    <plugin>
                        <artifactId>maven-surefire-plugin</artifactId>
                        <configuration>
                            <skip>false</skip>
                            <suiteXmlFiles>
                                <suiteXmlFile>src/test/resources/suite.xml</suiteXmlFile>
                            </suiteXmlFiles>
                        </configuration>
                    </plugin>
                </plugins>
            </build>
        </profile>
    </profiles>
</project>
Gradle
gradle test -PmySuite
Maven
mvn test -PmySuite

12.4. Test on multiple environments

If you run your tests on multiple test environments, you need for every environment a specific set of settings, for example another tt.baseurl or tt.browser.

12.4.1. Define your properties

Your test.properties describes your default setting. If you want to change some properties, you can define another property file and locate it into the resource folder.

test.properties
tt.browser=chrome
tt.baseurl=http://example.org
test_qa.properties with specific settings for a QA environment
tt.browser=firefox
tt.baseurl=http://qa.example.org

12.4.2. Load specific properties at startup

Load your custom property file at test startup if its necessary.

Example to load properties in any setup method
@BeforeSuite
public void setup() {
    String env = PROPERTY_MANAGER.getProperty("env", "");
    if (!"".equals(env)) {
        PROPERTY_MANAGER.loadProperties("test_" + env + ".properties");
    }
}

12.4.3. What happens?

Testerra is loading the test.properties automatically at its initialization. Loading another property file will overwrite already existing values.

If you add your env property at the Gradle or Maven call, you can control the execution depending on the test environment.

Gradle example
gradle test -Denv=qa

12.5. Project setup

Project setup recommendations.

12.5.1. Normalize file encoding

Always use the same file encoding for all your source file types like .html, .properties, .java etc.

IntelliJ: You can change the default encoding for files at File → Settings → File Encodings

12.5.2. Normalize file endings

Prevent using default line ending CRLF on Windows.

Git: Setup git config --global core.autocrlf input to prevent any commited CRLF.

12.6. Debugging tests

When you want to debug tests in your IDE, you can use the following setup to debug tests after they failed.

// Check if the JVM is in Debug mode
boolean isDebug = java.lang.management.ManagementFactory.getRuntimeMXBean().getInputArguments().toString().indexOf("-agentlib:jdwp") > 0;
if (isDebug) {
    // Disable close windows after test
    WEB_DRIVER_MANAGER.getConfig().setShutdownSessionAfterTestMethod(false);

    // Register to the end event
    EventBus eventBus = Testerra.getEventBus();
    eventBus.register(new MethodEndEvent.Listener() {
        @Override
        @Subscribe
        public void onMethodEnd(MethodEndEvent event) {
            if (event.isFailed()) {
                // Set your breakpoint here
                log().error("Failed");
            }
        }
    });
}

13. Migration from Testerra 1

The main goal for re-inventing the GuiElement API was at first, to provide a better user experience for implementing tests scripts in the role of a Test Engineer.

Automated testing on web pages is hard, especially on large enterprise environments we address with Testerra. And yes, we know the trouble what happens when tests (suddenly) fails.

As an Test Engineer, you may want expressive info messages for bugs in the System under Test or to keep your tests up to date to the specification. You may need easy to understand test code and a robust extensible Page Object model for large test environments by keeping the full potential of a Software Developer?

The new Testerra API provides it all.

If you’re a developer and want to know how the new API works, you can jump straight to The internals or just proceed with the next chapter to get an overview.

13.1. Page object changes

When implementing the PageFactoryProvider interface, you get an PAGE_FACTORY instance within your class.

import eu.tsystems.mms.tic.testframework.testing.PageFactoryProvider;

class MyTest extends TesterraTest implements PageFactoryProvider {

    @Test
    public void test_MyPageTest() {
        MyPage page = PAGE_FACTORY.createPage(MyPage.class);

        // Or using a different WebDriver
        MyPage page = PAGE_FACTORY.createPage(MyPage.class, WEB_DRIVER_MANAGER.getWebDriver());
    }
}

but you can instantiate pages within pages more easily:

class MyPage extends Page {
    public AnotherPage navigateToAnotherPage() {
        return createPage(AnotherPage.class);
    }
}
Using the static PageFactory is now @deprecated
MyPage page = PageFactory.create(MyPage.class, WebDriverManager.getWebDriver());
Passing variables to the Page constructor is now @deprecated
MyPage page = PageFactory.create(
    MyPage.class,
    WebDriverManager.getWebDriver(),
    new PageVariables()
);
Constructor instantiation of Pages is prohibited!
MyPage page = new MyPage(WebDriverManager.getWebDriver());

13.1.1. Components pattern

The new standard way to implement Sub Pages aka Components is now

public class MyForm extends AbstractComponent<MyForm> {
    public MyForm(UiElement rootElement) {
        super(rootElement);
    }
}

Instantiate components

class MyPage extends Page {
    private MyForm form = createComponent(MyForm.class, find(By.tagName("form")));
}

13.1.2. Implicit Element checks

The standard way of implicit GuiElement checks is now

class MyPage extends Page {
    @Check
    private UiElement uiElement = findById(42);
}
Performing explicit page checks is prohibited!
class MyPage extends Page {
    public MyPage(WebDriver webDriver) {
        super(webDriver);
        checkPage(); (1)
    }
}

MyPage page = PAGE_FACTORY.create(MyPage.class);
page.checkPage(); (2)
1 Calling checkPage() as protected member is prohibited
2 Calling checkPage() as public member is prohibited

13.2. Responsive PageFactory

The responsive page factory features have been removed from the default implementation. To use it anyway, you need to inject in in your Modules configuration.

import eu.tsystems.mms.tic.testframework.pageobjects.internal.ResponsivePageFactory;

public class MyModule extends AbstractModule {
    protected void configure() {
        bind(PageFactory.class).to(ResponsivePageFactory.class).in(Scopes.SINGLETON);
    }
}

13.3. Element creation changes

The new standard way to instantiate GuiElements is now

class MyPage extends Page {
    private UiElement uiElement = findById(42);
    private UiElement uiElement = find(By.xpath("//div[1]"));
}
Constructor instantiation of GuiElements is now @deprecated
class MyPage extends Page {
    private GuiElement guiElement = new GuiElement(By.xpath("//div[1]"), driver);
}

For descendant elements

class MyPage extends Page {
    private UiElement parent = findById(42);
    private UiElement sub = parent.find(By.xpath("//div[1]"));
}
getSubElement is now @deprecated
class MyPage extends Page {
    private GuiElement parent = new GuiElement(By.id(42), driver);
    private GuiElement sub = parent.getSubElement(By.xpath("//div[1]"));
}

List elements

UiElement anchors = find(By.tagName("a"));

anchors.expect().foundElements().is(3); (1)
UiElementList<UiElement> list = anchors.list();
list.first().expect().value(Attribute.TITLE).is("StartPage"); (2)
list.get(1).expect().value(Attribute.TITLE).is("About Us"); (3)
list.last().expect().value(Attribute.TITLE).is("Contact"); (4)

list.forEach(anchor -> anchor.expect().value(Attribute.HREF).startsWith("https")); (5)
GuiElement lists are now @deprecated
GuiElement anchors = new GuiElement(driver, By.tagName("a"));

Assert.assertEquals(anchors.getNumberOfFoundElements(), 3); (1)

List<GuiElement> list = anchor.getList();
list.get(0).asserts().assertAttributeValue("title", "StartPage"); (2)
list.get(1).asserts().assertAttributeValue("title", "About Us"); (3)
list.get(list.size()-1).asserts().assertAttributeValue("title", "Contact"); (4)

list.forEach(anchor -> Assert.assertTrue(anchor.getAttribute("href").startsWith("https"))); (5)

For elements in frames

class MyPage extends Page {
    private UiElement frame = find(By.tagName("frame")); (1)
    private UiElement uiElement = frame.findById(14); (2)
}
Passing frames to the constructor is not supported anymore.
class MyPage extends Page {
    private GuiElement frame = new GuiElement(By.tagName("frame"), driver); (1)
    private GuiElement guiElement = new GuiElement(By.id(14), driver, frame); (2)
}

13.4. Assertion changes

13.4.1. Element assertions

The new standard way to perform assertions on elements like Pages and GuiElements is now

uiElement.expect().displayed(true); (1)
uiElement.expect().value().contains("Hallo Welt").is(true); (2)
Using the GuiElement assertions is now @deprecated
guiElement.asserts().assertIsDisplayed(); (1)
guiElement.asserts().assertAttributeContains("value", "Hallo Welt"); (2)

Perform decisions on occurrence with the waitFor prefix.

if (uiElement.waitFor().displayed(true)) {
    // Optional element became visible
}
Using the GuiElement waits is now @deprecated
if (guiElement.waits().waitForIsDisplayed()) {
}

Support of more features through consistent assertion API

uiElement.expect().css("display").is("none"); (1)
uiElement.expect().text()
    .map(value -> value.toLowerCase()) (2)
    .matches("^hello\\s.orld") (3)
    .is(true);
1 Perform assertions on the element’s CSS properties
2 Map values
3 Regular expression assertions

Custom failure messages

uiElement.expect().displayed(true, "Element is displayed");

13.4.2. Page assertions

Assert that a text is visible on a page

page.expect().url().endsWith("index.html").is(true); (1)

class MyPage extends Page {
    public void checkIfPageContainsText(String text) {
        this.getFinder()
            .findDeep(XPath.from("*").text().contains(text))
            .expect().displayed(true); (2)
    }
}
Using the text assertions is now @deprecated
Assert.assertTrue(page.getWebDriver().getCurrentUrl().endsWith("index.html")); (1)
page.assertIsTextDisplayed("You see me"); (2)

13.4.3. Screenshot based Assertions

The new standard way to perform screenshot based assertions is now

uiElement.expect().screenshot().pixelDistance("ElementReference").isLowerThan(1);
page.expect().screenshot().pixelDistance("PageReference").isBetween(0, 10);

Add screenshot to the report

page.screenshotToReport();
Using the static UITestUtils is now @deprecated
UITestUtils.takeScreenshot(page.getWebDriver(), true);

13.4.4. Layout based Assertions

To check if a element is beside another element

UiElement left = find(By.id("left"));
UiElement right = find(By.id("right"));

left.expect().bounds().leftOf(right).is(true); (1)
left.expect().bounds().intersects(right).is(false);

Elements aligned to the same right

UiElement top = find(By.id("top"));
UiElement bottom = find(By.id("bottom"));

top.expect().bounds().fromRight().toRightOf(bottom).is(0); (2)

Element contains another element

UiElement body = find(By.tagName("body"));
UiElement nav = parent.find(By.tagName("nav"));

body.expect().bounds().contains(nav).is(true);
Using the assertLayout() method is now @deprecated
left.asserts().assertLayout(Layout.outer().leftOf(right)); (1)
top.asserts().assertLayout(Layout.outer().sameRight(bottom, 0)); (2)

13.5. New Control API

With the TestController API, you are able to control your test flow during runtime. Like timeouts, assertion handling and retry intervals. The Control instance is availabe as soon you implement the TestControllerProvider interface.

import eu.tsystems.mms.tic.testframework.testing.TestControllerProvider;

class MyTest implements TestControllerProvider {
}

13.5.1. Collected Assertions

The new standard way to collect assertions of elements in tests or pages is now

CONTROL.collectAssertions(() -> uiElement.expect().displayed(true));

For many elements or pages

CONTROL.collectAssertions(() -> {
    MyPage page = PAGE_FACTORY.create(MyPage.class);
    page.expect().title().is("TestPage");
    uiElement.expect().value().contains("Hello");
});

For custom assertions

CONTROL.collectAssertions(() -> {
    String data = loadSomeData();
    Assert.assertEquals(data, "Hello World", "some data");
});

For other test methods

@Test
public void test_CollectEverything() {
    CONTROL.collectAssertions(() -> test_TestSomething());
}
Using the static AssertCollector is now @deprecated
AssertCollector.assertTrue(false);
Using the GuiElement’s assert collector is now @deprecated
guiElement.assertCollector().assertIsDisplayed();
Forcing standard assertions is now @deprecated
page.forceGuiElementStandardAsserts();
Setting collected assertions by default is now @deprecated
tt.guielement.default.assertcollector=true

13.5.2. Optional Assertions

The new standard way for optional assertions works like Collected Assertions

CONTROL.optionalAssertions(() -> uiElement.expect().displayed(true));
Using the static NonFunctionalAssert is now @deprecated
NonFunctionalAssert.assertTrue(false);
Using the GuiElement’s non functional asserts are now @deprecated
guiElement.nonFunctionalAsserts().assertIsDisplayed();

13.6. Timeouts and Retry API

13.6.1. @Check timeouts

The new standard way for setting GuiElement timeouts on @Check is now

class MyPage extends Page {
    @Check(timeout = 1)
    private UiElement uiElement;
}
Setting and restoring explicit timeouts on the GuiElement is now @deprecated
guiElement.setTimeoutInSeconds(1);
guiElement.restoreDefaultTimeout();

For the whole Page

@PageOptions(elementTimeoutInSeconds = 1)
class MyPage extends Page {...}
Setting explicit timeouts on the Page is now @deprecated
page.setElementTimeoutInSeconds(1);

Override during runtime

CONTROL.withTimeout(1, () -> uiElement.expect().displayed(true));

For many elements

CONTROL.withTimeout(1, () -> {
    MyPage page = PAGE_FACTORY.create(MyPage.class);
    page.expect().title().is("TestPage");
    uiElement.expect().value().contains("Hello");
});

For other test methods

@Test
public void test_TestSomething_fast() {
    CONTROL.withTimeout(1, () -> test_TestSomething());
}
Setting timeouts using static POConfig is now @deprecated
POConfig.setThreadLocalUiElementTimeoutInSeconds(1);
POConfig.setUiElementTimeoutInSeconds(1);
POConfig.removeThreadLocalUiElementTimeout();

13.7. Modul migration

We want to make Testerra more SOLID. Thats why we finally introduced Dependency Injection via. Google Guice.

To enable you ModuleHook for v2, you need to extend this class from AbstractModule.

import com.google.inject.AbstractModule;
import eu.tsystems.mms.tic.testframework.hooks.ModuleHook;

public class MyModuleHook extends AbstractModule implements ModuleHook {
}

13.8. The internals

This chapter explains how the new API works internally.

13.8.1. Everything is timed, but once

Every assertions is performed multiple times with a maximum timeout of tt.element.timeout.seconds. If this timeout has reached, the assertion will finally fail.

But there is only one timeout for each assertion now. No more implicit timeouts on sub method calls like getWebElement(), isPresent() etc.

This is what an assertion internally does, when you perform uiElement.expect().text().contains("Something").

  1. Find web element using WebDriver

  2. Check if element is present

  3. Retrieve the text of the element

  4. If the text does not contain "Something", start over with 1.

  5. Otherwise when the timeout has reached, an assertion error message will be displayed that the text of the element you’re looking for doesn’t contain the string "Something".

13.8.2. More consistence, less complexity

There will be only one interface for everything you need in a manner of an easy to read fluent API. It is not too abstract like TestNG Assert, and not to technically like AssertJ.

The new interface will always act exactly like you expect to, no matter in which context you are. You don’t have to decide which method you should use. The standard way will be the best fit for most cases. Let the framework handle the workarrounds for you.

13.8.3. Strict Page Object pattern

Testerra was built with the Page Object pattern in mind. The new API makes it easier for your team, to keep you on track makes it harder to break out, even if your project contains hundreds of Pages and thousands of Tests.

The new components extension allows you to implement page objects like a web developer would do, by separating functionality into reusable components.

13.8.4. Smaller codebase and less boilerplate

The API provides abstract assertion implementations for several properties.

  1. StringAssertion allows you to perform assertions on strings like contains("Something")

  2. QuantityAssertion allows you to perform assertions on quantified values like isBetween(-2,3)

  3. BinaryAssertion allows to assert if an value is boolean or a string that represents a boolean value with is(true)

These generic assertions are used in many other assertions and supports a hierarchical order. This is what the hierarchy looks like when you perform uiElement.screenshot().file().extension().is("png")

  1. Take a screenshot and return a ScreenshotAssertion

  2. Return a generic FileAssertion with the taken screenshot file

  3. Return a generic StringAssertion with the given file name extension

This implementation helps to keep the internal assertion code small, easy extensible and maintainable.

14. Known issues

Because we depend on other frameworks and tools like TestNG and Selenium we may encounter issues that we want to fix, but are bound to releases and fixes in our dependencies.

Every known issue in our dependencies that will lead to an error, an unexpected or unsightly behaviour in Testerra framework will be documented here, as well as a solution or a workaround.

14.1. Issues with Selenium

14.1.1. Close WebDriver sessions without WebDriverManager

Never close WebDriver sessions calling WebDriver.quit(). This may encounter problems or some kind of unexpected issues, because the session is not marked as closed in WebDriverManager 's session store.

15. Overview of all Testerra properties

Properties are managed by the PropertyManager

15.1. Testerra core properties

Property default Description

tt.system.settings.file

system.properties

File name of property file for proxy settings.

tt.cert.trusted.hosts

(empty)

Whitespace separated list of trusted hosts (for SSL sockets)

15.2. WebdriverManager properties

Property default Description

tt.browser

na.

Browser label, the following browsers are possible

  • firefox

  • chrome

  • ie

  • edge

  • safari

  • phantomjs

  • htmlunit

  • chromeHeadless

tt.browser.version

na.

Version label

tt.browser.setting

You can combine browser type and version as single string like firefox:65 (overrides tt.browser and tt.browser.version)

tt.baseurl

na.

URL of the first site called in a new browser session

tt.webdriver.mode

remote

Sets the webdriver mode. remote uses an external Selenium server

tt.selenium.server.url

na.

The complete URL to a remote Selenium server.
(e.g.: http://localhost:4444/wd/hub)

This setting overrides the following two properties.

tt.selenium.server.host

localhost

The host name of the remote Selenium server.

tt.selenium.server.port

4444

The port of the remote Selenium server.

tt.browser.maximize

false

Try to maximize the browser window.

tt.browser.maximize.position

self

Screen position for the window to maximize. If you have several screens and want to maximize the window on another screen than your default screen, you can choose between (left, right, top or bottom)

tt.display.resolution

1920x1200

Fall-back resolution, if maximize does not work.
For custom window browser size use driver.manage().window().setSize(new Dimensions(x, y))

tt.wdm.closewindows.aftertestmethods

true

If true, after every test method all open browser windows are closed.

tt.wdm.closewindows.onfailure

true

If true, after failed test methods all open browser windows are closed

tt.wdm.timeouts.seconds.selenium.command.stuck

300

Kills a stuck selenium command after this timeout

tt.wdm.timeouts.seconds.window.switch.duration

5

Maximum duration to wait for on a WebDriverUtils.findWindowAndSwitchTo() in seconds.

webdriver.timeouts.seconds.pageload

120

Defines the Selenium timeout for page load seconds.
(driver.manage().timeouts().pageLoadTimeout())

webdriver.timeouts.seconds.script

120

Defines the Selenium timeout for execution of async scripts in seconds.
(driver.manage().timeouts().setScriptTimeout())

15.3. PageFactory properties

Property default Description

tt.project.package

eu.tsystems.mms.tic

The package where the PageFactory searches for screen resolution specific subclasses.

tt.page.factory.loops

20

The loop detections prevents endless recursive creation of new page instances. This property defines the max count of loops.

15.4. UiElement properties

Property default Description

tt.element.timeout.seconds

8

Default timeout for UiElement actions and assertions

tt.guielement.default.assertcollector @deprecated

false

Sets the behavior of @deprecated GuiElement.asserts():
true asserts() reacts like assertCollector() (Continue at FAIL)
false asserts() reacts like default assert (Stop at FAIL)

tt.guielement.checkrule

CheckRule.IS_DISPLAYED

Rule for Page objects validation of UiElements
(see Check Annotations)

tt.delay.after.guielement.action.millis

0

Waits in milliseconds after an action on a UiElement.

tt.delay.before.guielement.action.millis

0

Waits in milliseconds before an action on a UiElement.

15.5. Execution properties

Property default Description

tt.demomode

false

Visually marks every UiElement that is being processed by click, type or assert. This may break layout checks.

tt.dryrun

false

All testmethods are executed with ignoring all steps. Also all setup methods (before, after) are ignored.
This is useful to check your TestNG suite without executing real testcode.

tt.report.list.tests

false

Lists all test methods in the current context without executing them.

tt.on.state.testfailed.skip.shutdown

false

If true all browser sessions are left open.

tt.on.state.testfailed.skip.following.tests

false

If true, all follwoing tests are skipped in case a test failed.

tt.failed.tests.if.throwable.classes

na.

Failed tests condition: Throwable Class(~es, devided by ',').

tt.failed.tests.if.throwable.messages

na.

Failed tests condition. Throwable Message(~s, devided by ',').

tt.failed.tests.max.retries

1

How often tests should be retried by the Testerra RetryAnalyzer.

tt.reuse.dataprovider.driver.by.thread

false

Reuse existing Webdriver session for a thread of dataprovider.

tt.execution.omit.indevelopment

false

If true Testerra will remove all @InDevelopment annotated test methods from execution.

tt.watchdog.enable

true

Enables/Disables the WebDriverWatchDog.

tt.watchdog.timeout.seconds

300

Sets the timeout in seconds after the WebDriverWatchDog terminates the test execution (with System.exit(99) terminated).

tt.failure.corridor.active

true

Activate the failure corridor.

tt.failure.corridor.allowed.failed.tests.high

0

Number of test methods with weighting high allowed to fail to still mark the suite as passed.

tt.failure.corridor.allowed.failed.tests.mid

0

Number of test methods with weighting mid allowed to fail to still mark the suite as passed.

tt.failure.corridor.allowed.failed.tests.low

0

Number of test methods with weighting low allowed to fail to still mark the suite as passed.

tt.perf.test

false

If true, activates performance test related behaviour sets default values for the performance test.

tt.perf.page.thinktime.ms

0

Sets a thinktime in ms for each page load.

tt.perf.generate.statistics

false

If true, activates generation of graphs for the performance measurements.

15.6. Report properties

Property default Description

tt.report.dir

/target/surefire-reports/report/

Creates the report in the specified directory below the working directory.

tt.report.name

na.

Names the report (e.g. the project where Testerra is used)

tt.runcfg

na.

Set a run configuration to use different variations (test sets) of a test scope within a build task.

tt.screenshotter.active

true

If true, screenshots are fetched and added to the report.

tt.screenshots.preview

true

If true a screenshots preview is added to the test methods in the report

tt.screenshot.on.pageload

false

If true, screenshot after page is loaded will be taken

tt.screencaster.active

true

If true, all screencasts are fetchted and added to the report depending on the enabled test method states by tt.screencaster.active.on.failed and tt.screencaster.active.on.success.

tt.screencaster.active.on.failed

true

If true, all screencasts for failed tests are fetched and added to the report.

tt.screencaster.active.on.success

false

If true, all screencasts for successful tests are fetched and added to the report.

tt.report.activate.sources

true

If true, adds source information to report

tt.module.source.root

src

Root directory for searching source info.

tt.source.lines.prefetch

5

Amount of lines taken into account before the actual error occurred (print lines between error line and error line minus tt.source.lines.prefetch)

15.7. Layout Check properties

Property default Description

tt.layoutcheck.reference.path

src/test/resources/screenreferences/reference

Path where the reference screenshots where saved

tt.layoutcheck.reference.nametemplate


Prefix for ReferenceScreenshots

tt.layoutcheck.takereference

false

Determines whether reference images where taken in the current run

tt.layoutcheck.use.ignore.color

false

Specifies whether the upper left pixel in the reference image defines an "ignore color". If true, then every pixel with this color will be ignored during the later comparison.

tt.layoutcheck.use.area.color

false

Specifies whether the upper left pixel in the reference image defines an "area color". If true, then every area surrounded by pixels with this color will be used for later comparison, other areas are dismissed. Opposite of tt.layoutcheck.use.ignore.color.

tt.layoutcheck.actual.nametemplate


Filename scheme for saving current screenshots. The value must contain a '%s' which is replaced by the specified target file name during test execution.

tt.layoutcheck.distance.nametemplate


Filename scheme for saving distance images. The value must contain a '%s' which is replaced by the specified target file name during test execution.

tt.layoutcheck.distance.path

src/test/resources/screenreferences/distance

Directory path under which the calculated distance images are stored.

tt.layoutcheck.actual.path

src/test/resources/screenreferences/actual

Directory path under which the current screenshots for the comparison are saved

tt.layoutcheck.match.threshold

0

Max allowed difference in rgb values between actual and reference image in percentage. If R, G, and B percentages are higher than tt.layoutcheck.match.threshold the corresponding pixel is marked as false (=red color in distance image)

tt.layoutcheck.match.threshold

0.95d

Defines at which score a region is considered a match. Should be as high as possible and as low as needed.

tt.layoutcheck.displacement.threshold

5

Displacement distance of matches that is considered as error (when distance > tt.layoutcheck.displacement.threshold)

tt.layoutcheck.intra.grouping.threshold

5

Threshold for grouping movement errors (errors ⇐ tt.layoutcheck.intra.grouping.threshold are grouped)

tt.layoutcheck.min.match.distance

5

Max distance for grouping multiple matches as single match (distance of matches < tt.layoutcheck.min.match.distance are marked as single match)

tt.layoutcheck.min.size.difference.sub.images

10

Minimal difference in size of the reference and actual image, to consider the reference image as sub image.

tt.layoutcheck.distance.multiple.matches

14

Max distance between matches until a warning message about the parameter setting is logged. (matches have distance < tt.layoutcheck.distance.multiple.matches a warning is logged)

tt.layoutcheck.ignore.ambiguous.movement

-

when true ignore ambiguous movement, which means for a template, several matches were found at different positions and it is unclear to which match the template belongs to.

tt.layoutcheck.ignore.movement

-

when true ignore movement, which mean exactly one match was found for a template, but it is in the wrong position.

tt.layoutcheck.ignore.group.movement

false

when true ignore group movement, which means for a set of templates, displacement errors have been found which have the same displacement vector.

tt.layoutcheck.ignore.missing.elements

-

when true ignore missing elements, which mean no match was found for a template.

tt.layoutcheck.ignore.ambiguous.match

-

when true ignore ambiguous match, which means several templates have been matched to this position, but only one template can be correct.

Architecture

architecture

Glossary

SUT

System under test

Tapas

Test Automation Platform as a Service (https://tapa-as.io)
